Shop | 4K UHD Broadcast Products | 4K UHD BNC Plugs | Precision BNC Plug Belden 1694A, 1694ANH, Image 1000, HD1000

Precision BNC Plug Belden 1694A, 1694ANH, Image 1000, HD1000

Precision BNC Plug Belden 1694A, 1694ANH, Image 1000, HD1000
Product image
Information
Technical
Accessories

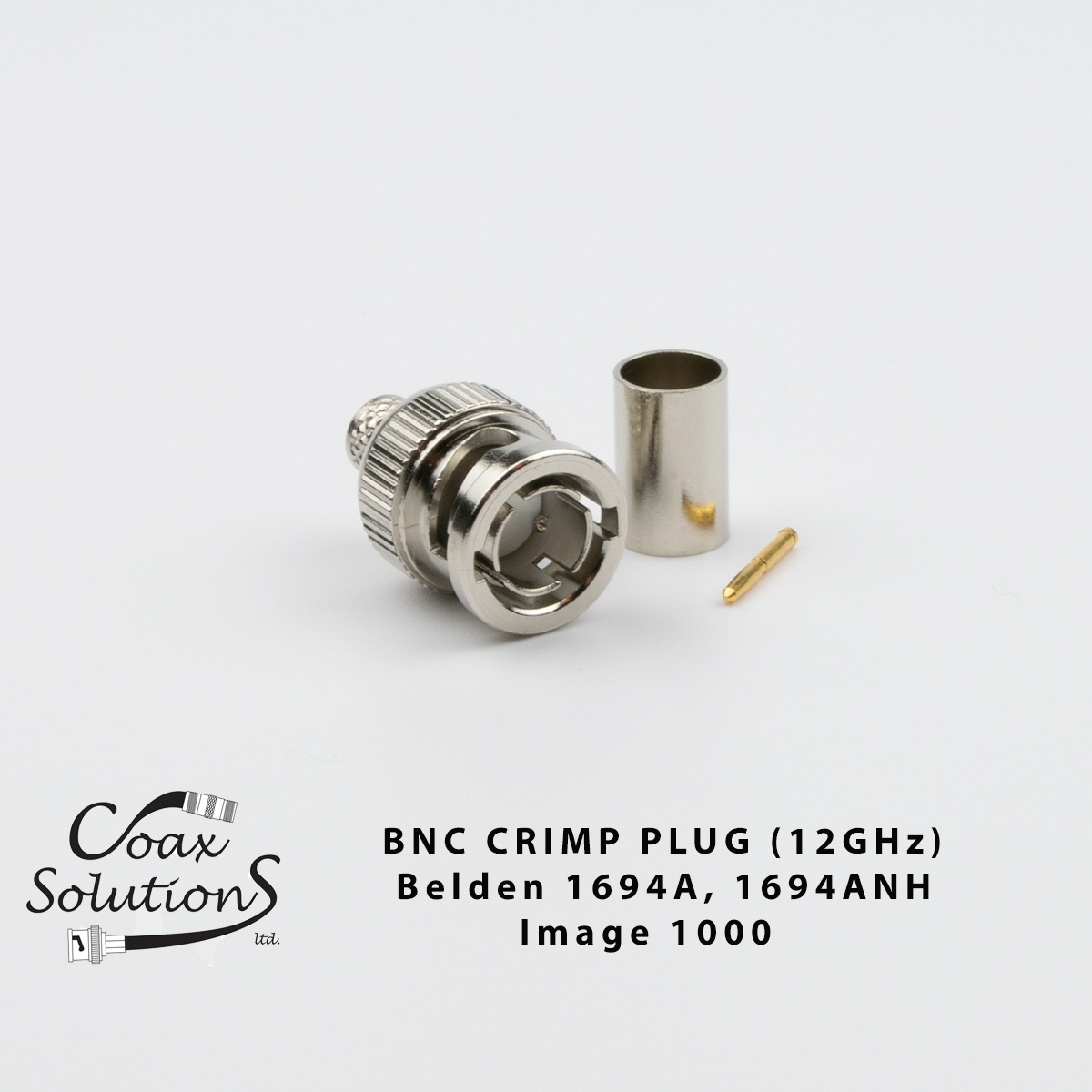

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) and related High Definition Serial digital Interface (HD-SDI) specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with Belden 1694A,Belden 1694ANH, Image1000, Event HD1000 and other similar sized cables. They give excellent VSWR and return loss figures.

 We also offer pre terminated Belden 1694A and 1694ANH Patch leads and a bespoke cable assembly service for all our precision BNC plugs.

  • Frequency range: DC to 12GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +85 Deg C
  • Working voltage: 500V RMS maximum
  • Body: Zinc Alloy, Nickel plated
  • Coupling nut: Zinc alloy, Nickel plated
  • Dielectric: Delrin
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated

 Suitable cables: Belden 1694A, Belden 1694ANH, Image 1000, Event HD1000 and similar size alternatives.

Stock code BNC1050084HD
Contact Hex 1.07mm (Sq)
Ferrule Hex 7.06mm
Crimp ToolCRT1021
Cable TypeBelden 1694A, 1694ANH, Image 1000, HD1000
Impedance75 Ohm
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-12GHz
HD-SDI Crimp Tool - Belden 179DT, 1505 & 1694
HD-SDI Crimp Tool - Belden 179DT, 1505 & 1694 £44.00
Quantity:Increase QuantityDecrease Quantity
£1.10
