Precision BNC Plug RG179DT, RG179BU, HD300

Precision BNC Plug RG179DT, RG179BU, HD300

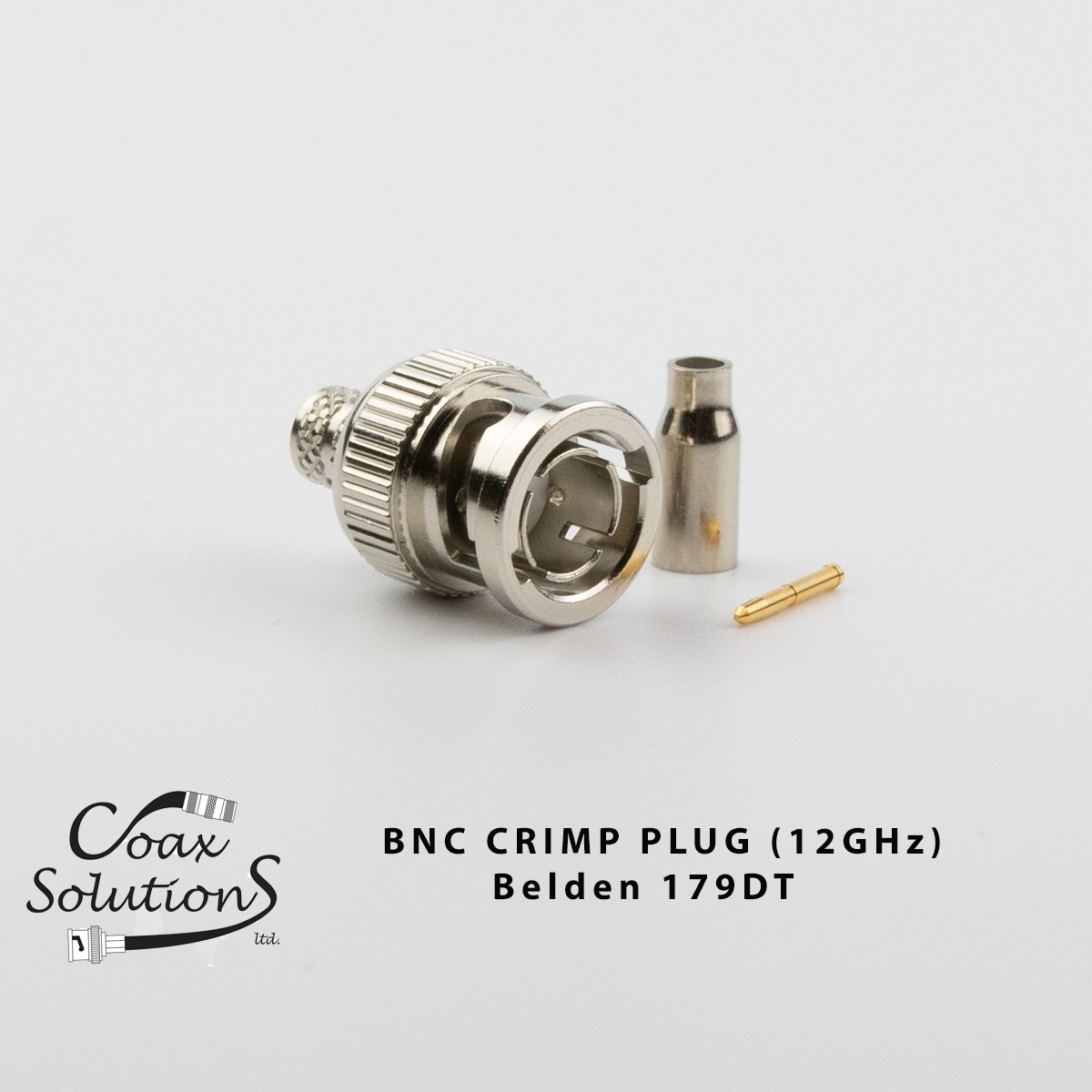

Product image
Information
Technical
Accessories

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) and related High Definition Serial digital Interface (HD-SDI) specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with ),RG179BU, Event series HD300 and other similar sized cables. They give excellent VSWR and return loss figures.

We also offer pre terminated Belden RG179DT Patch leads and a bespoke cable assembly service for these Precision BNC plugs.

  • Frequency range: DC to 12GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +85 Deg C
  • Working voltage: 500V RMS maximum
  • Body: Zinc Alloy, Nickel plated
  • Coupling nut: Zinc alloy, Nickel plated
  • Dielectric: Delrin
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated
Suitable cables: Belden RG179DT, RG179BU, Event HD300 and similar size cables.
Stock code BNC1050070HD
Contact Hex 1.07mm (Sq)
Ferrule Hex 4.52mm
Crimp ToolCRT10073G or CRT1021
Cable TypeRG179DT, RG179BU, HD300
Impedance75 Ohm
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-12GHz
HD-SDI Crimp Tool - Belden 179DT & Belden 1855
HD-SDI Crimp Tool - Belden 179DT & Belden 1855 £44.00
Strain Relief Boot 03 - RG174, RG179, RG316 ...
Strain Relief Boot 03 - RG174, RG179, RG316 ... £0.12
Belden 179DT-305M
Belden 179DT-305M £472.75
Quantity:Increase QuantityDecrease Quantity
£1.10
