4K UHD video patch cable - Belden 4694R - 45.0M

4K UHD video patch cable - Belden 4694R - 45.0M
Information
Technical
Accessories

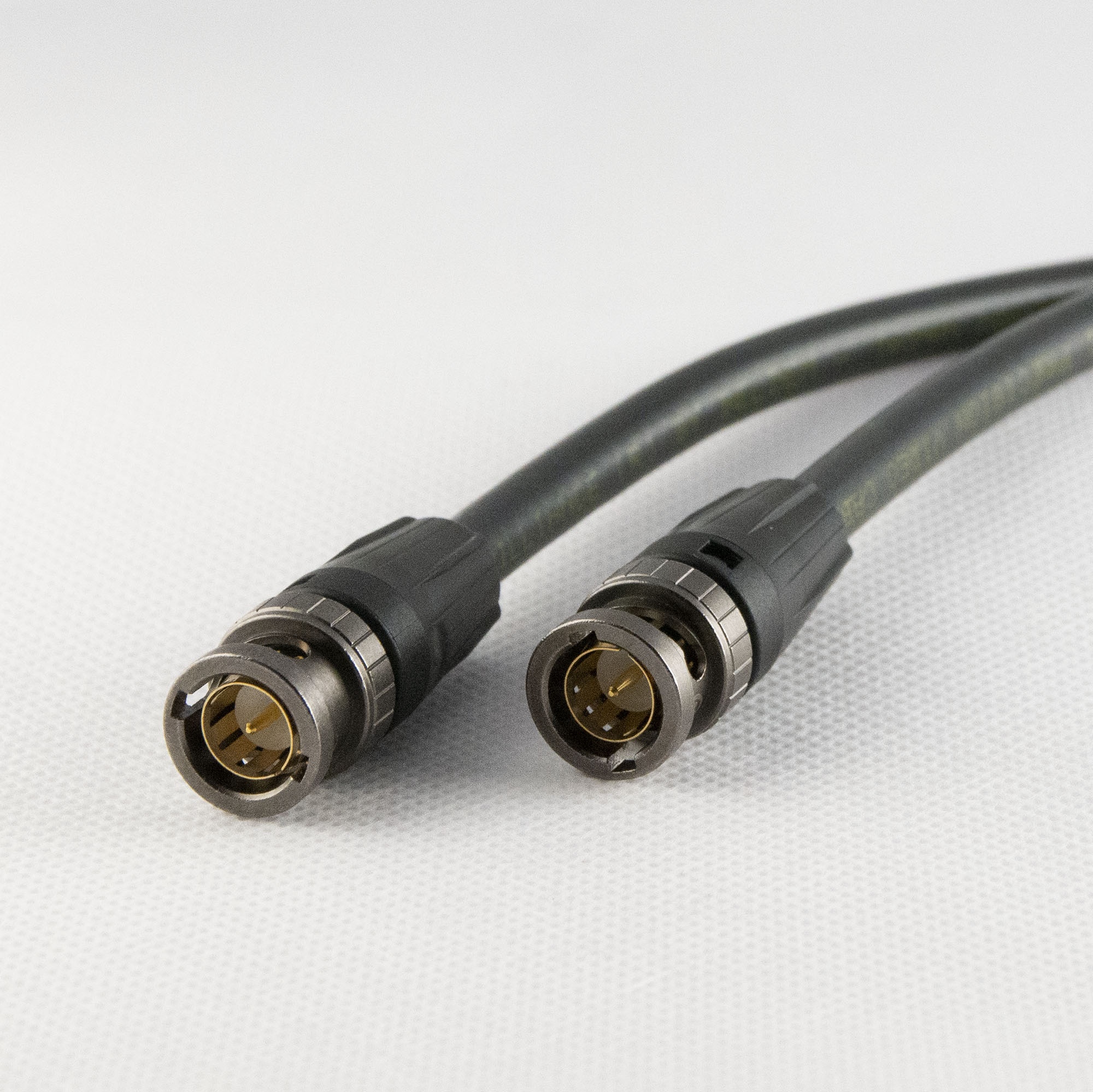

4K UHD video patch cables, assembled in the UK using Belden 4694R 4K UHD precision video cable and Neutrik rear twist UHD BNC connectors (NBNC75BTU11X). Fitted with Black strain relief boots. (coloured options available)

Assembled at our Harlow assembly facility, under our proven quality system.

Suitable for a range of Broadcast applications up to 12GHz (single link)

  • SD-SDI (SMPTE ST259)
  • HD 1.5G-SDI (SMPTE ST292)
  • HD 3G-SDI (SMPTE ST424)
  • UHDTV1 AND UHDTV2 (SMPTE ST425-4)
  • UHDTV1 AND UHDTV2 (ST2081-1 6Gb/s) (ST2082-1 12Gb/s) (ST2083-1 24Gb/s)

Recommended transmission distance for Belden 4694R for UHDTV1 and UHDTV2 applications

UHDTV1 & UHDTV2    3Gb/s = 164M

UHDTV1 & UHDTV2    6Gb/s = 114M

UHDTV1 & UHDTV2   12Gb/s = 78M

Belden recommended transmission distance chart here: digital-video-distance-chart-24-4-2019.pdf

Belden 4694R data sheet here: Belden 4694R data sheet.pdf

Neutrik NBNC75BTU11X data sheet here: nbnc75btu11x.pdf

Stock code CAS1661-45.0M
Cable TypeBELDEN 4694R
Impedance75 Ohm
Frequency RangeDC to 12GHz
Connector 'A'NBNC75BTU11X
Connector 'B'NBNC75BTU11X
ColourBLACK (BOOT)
Quantity:Increase QuantityDecrease Quantity
£185.64
Out of stock
