4K UHD video patch cable - Belden 4855R - 40.0M

4K UHD video patch cable - Belden 4855R - 40.0M
Product image
Information
Technical
Accessories

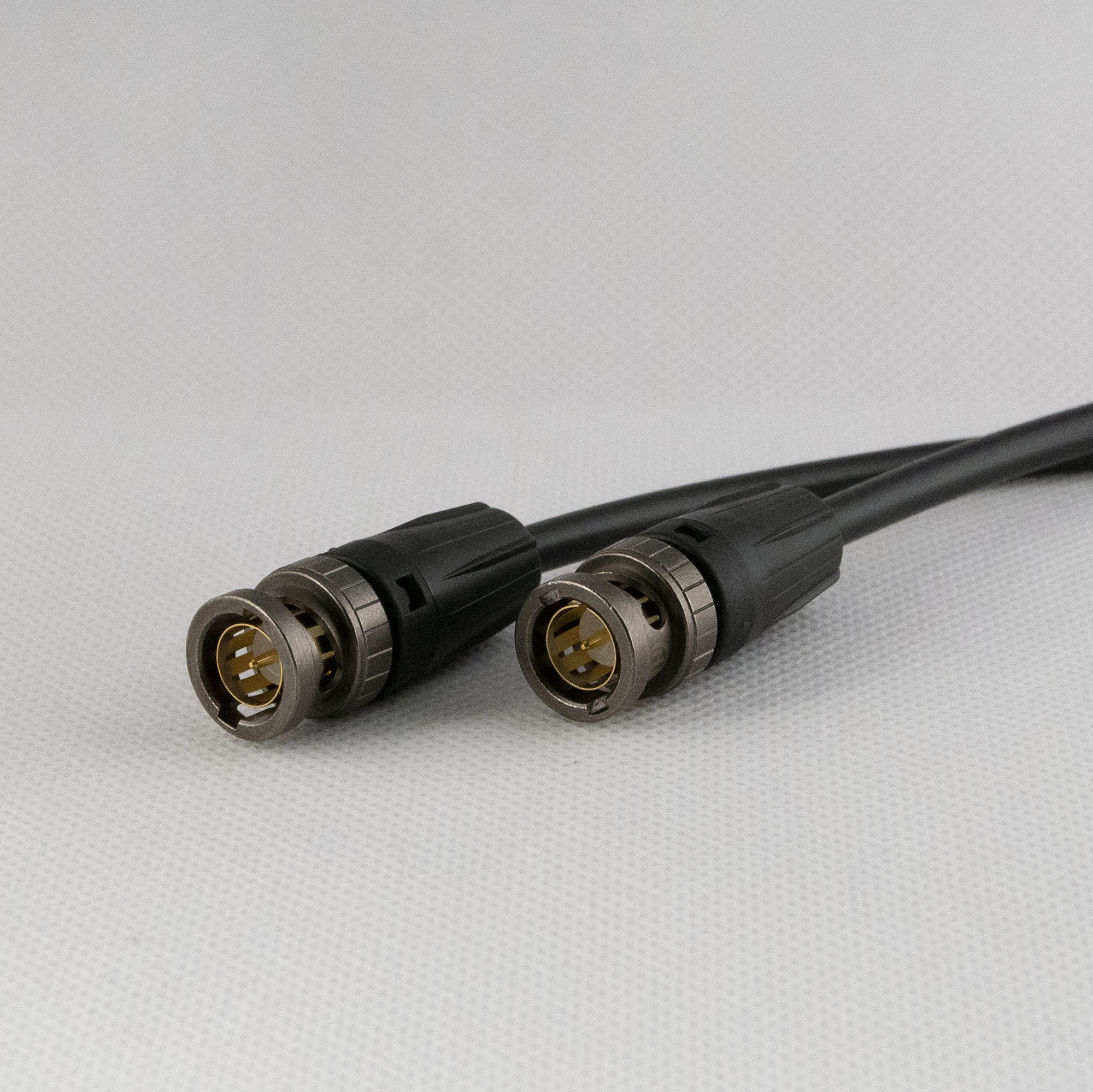

4K UHD video patch cables, assembled in the UK using Belden4855R 4K UHD precision video cable and Neutrik rear twist UHD BNC connectors(NBNC75BDD6X). Fitted with Black strain relief boots. (coloured options available)

Assembled at our Harlow assembly facility, under our provenquality system.

Suitable for a range of Broadcast applications up to 12GHz(single link)

  • SD-SDI (SMPTE ST259)
  • HD 1.5G-SDI (SMPTE ST292)
  • HD 3G-SDI (SMPTE ST424)
  • UHDTV1 AND UHDTV2 (SMPTE ST425-4)
  • UHDTV1 AND UHDTV2 (ST2081-1 6Gb/s) (ST2082-1 12Gb/s) (ST2083-1 24Gb/s)

Recommended transmission distance for Belden 4855R for UHDTV1 and UHDTV2applications

UHDTV1 & UHDTV2    3Gb/s = 94M

UHDTV1 & UHDTV2    6Gb/s = 66M

UHDTV1 & UHDTV2   12Gb/s = 45M

Belden recommended transmission distance chart here: digital-video-distance-chart-24-4-2019.pdf

Belden 4855R data sheet here: Belden 4855R data sheet.pdf

Neutrik NBNC75BDD6X data sheet here: nbnc75bdd6x.pdf

Stock code CAS1660-40.0M
Cable TypeBELDEN 4855R
Impedance75 Ohm
Frequency RangeDC to 12GHz
Connector 'A'NBNC75BDD6X
Connector 'B'NBNC75BDD6X
ColourBLACK (BOOT)
Quantity:Increase QuantityDecrease Quantity
£121.70
Out of stock
