Belden 4694R + CAT6 Hybrid 4K UHD Patch Cable

Introduction

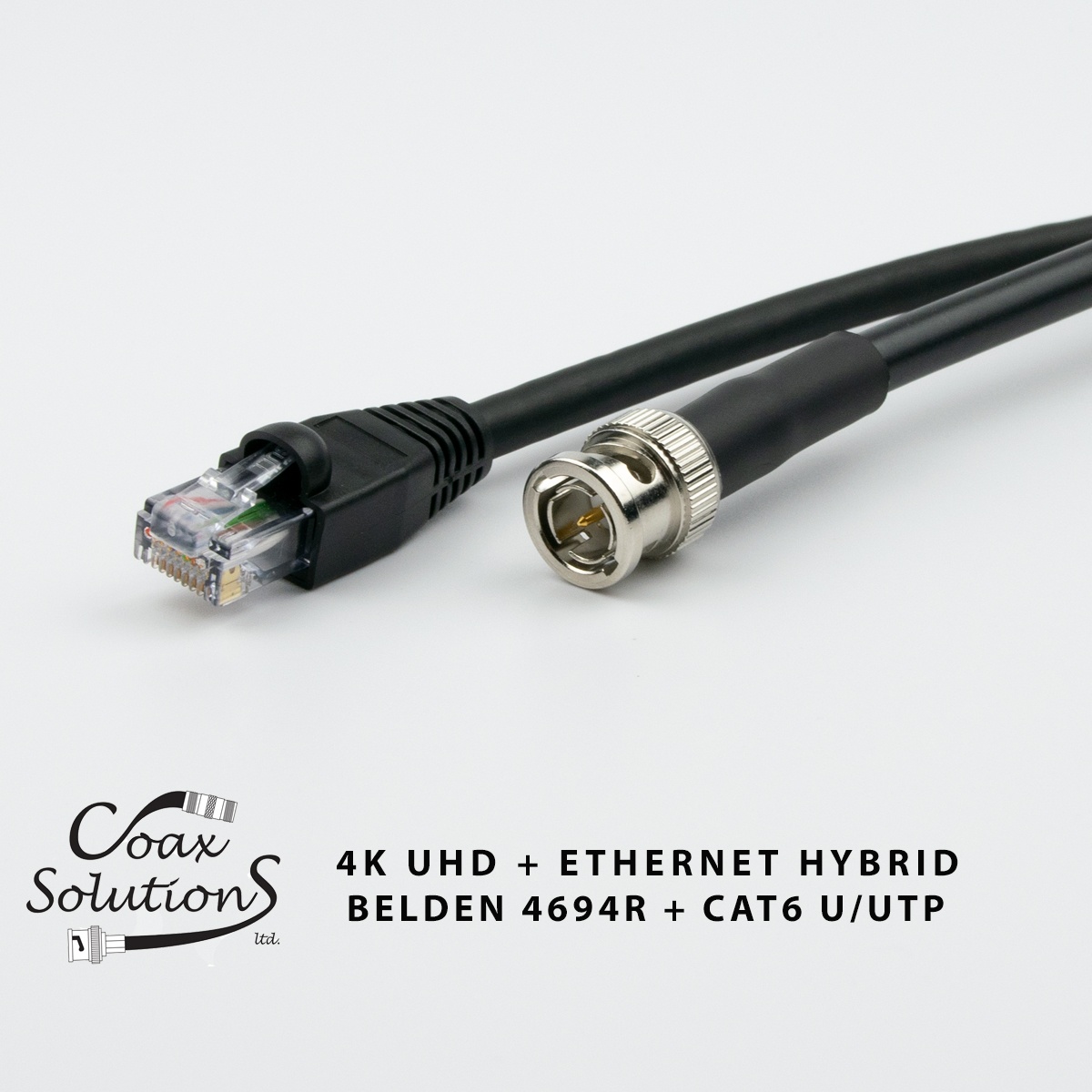

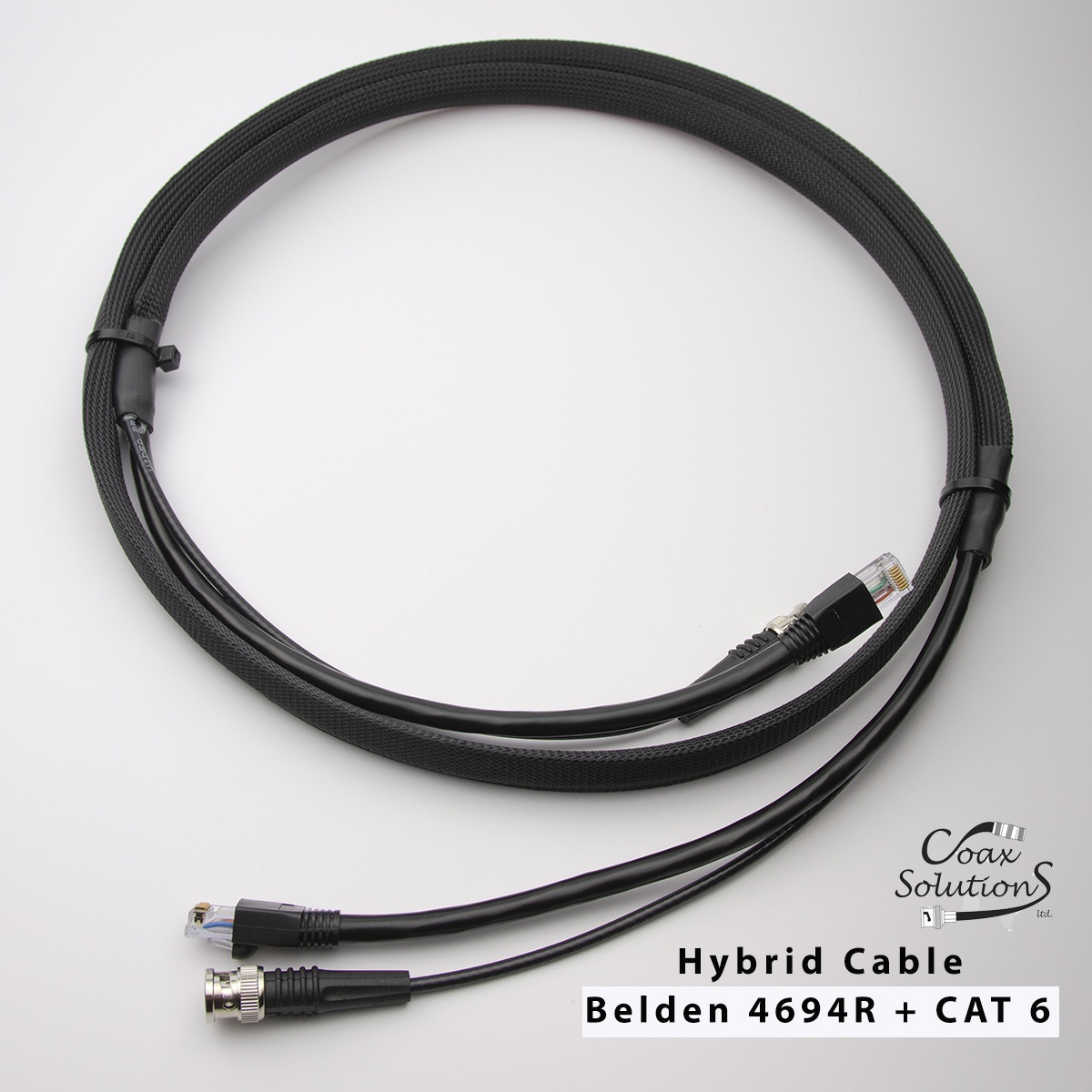

Hybrid Cable assembly - 1 x Belden 4694R 4K UHD 12GHz video cable, terminated with precision 4K UHD BNC plugs plus 1 x CAT6 U/UTP Ethernet cable terminated with true CAT6 RJ45 plugs and flush snag-less boots.  The 2 cables are held together within a Halogen free braided sleeve, leaving 250mm tails both ends. Tail length can be specified at the time of ordering to suit your application.

The CAT6 U/UTP cable uses a 23awg solid conductor and has a Black LSZH jacket. For cables up to 50M we can also supply a CAT6 U/UTP  24awg stranded conductor option allowing more flexibility.

Application

Video Streaming, Camera interface, Distribution amplifier, network switch etc

Precision video cable - SMPTE ST 2081-1 (includes 6GHz single link)

                                     SMPTE ST 2082-1 (includes 12GHz single link)

                                     SMPTE ST 2083-1 (includes 24GHz dual link)

Ethernet cable -   CAT6 up to 1G Ethernet ANSI/TIA-568-C.2, ISO/IEC 1801, BS EN 50173

Technical Information

Belden 4694R Data Sheet      4694R data sheet 31-1-20.pdf

CAT6 U/UTP    Data sheet     CAT6 U-UTP Solid cable.pdf

Summary

• Hybrid (Siamese) Precision 4K UHD video + CAT6 Ethernet
• Belden 4694R HD-SDI video cable with 4K UHD BNC plugs
• CAT6 U/UTP 23awg Ethernet cable with CAT6 RJ45 plugs and snag-less boots
• Halogen Free braided sleeve

Options

• Up to 50M length - CAT6 U/UTP 24awg stranded cable for flexibility
• Tail length can be adjusted to suit application. - specify when ordering
• Bespoke multi coax or multi ethernet variants - contact our sales team.
