Belden 1694A HD-SDI Patch Cable

Introduction

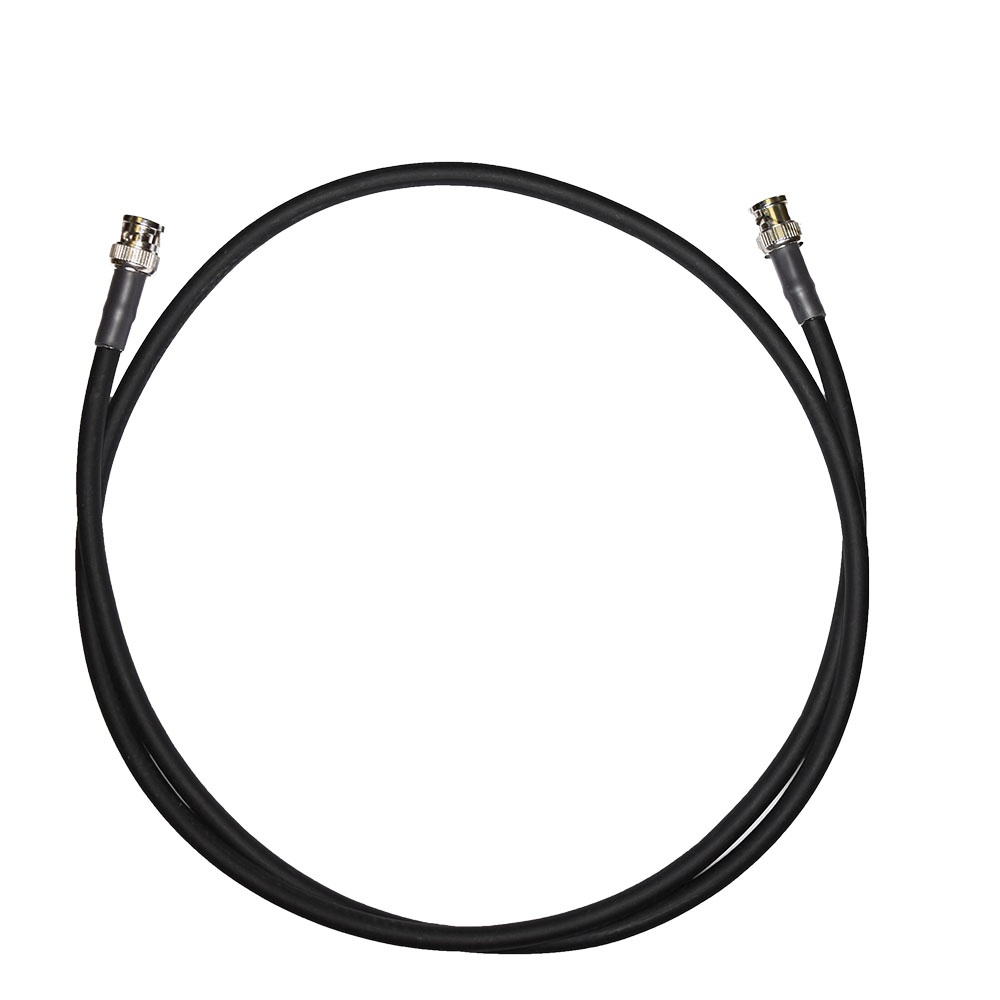

HD-SDI patch cables using BELDEN 1694A 6GHz cable and precision HD-SDI BNC plugs. These HD-SDI patch leads are assembled at our Harlow, Essex assembly facility under our proven quality control system.

Belden 1694A is a RG6 size low loss serial digital coax video cable (OD 6.96mm) suitable for longer run HD-SDI applications. Also suitable for older applications (composite, component & widescreen video)

Belden 1694A has 18awg conductor, Duofoil and tinned copper braid screens and a Black UV resistant PVC jacket suitable for indoor and outdoor use.

Application

1.      SMPTE ST292   (HD 1.5G-SDI)      1.5Gb/s

2.      SMPTE ST424   (HD  3G-SDI)         3Gb/s

Recommended maximum transmission distance

SMPTE ST292 & ST424 - Distance is based on 20dB loss at ½ clock frequency according to Belden data sheets

HD-1.5Gb/s     maximum distance is 112M

HD-3Gb/s        maximum distance is 78M

Options

Cable labels

Cable length

Deployable Reel

Technical information

Belden 1694A data sheet   1694A data sheet 31-1-20.pdf

Belden Recommended transmission distance table  digital-video-distance-chart-24-4-2019.pdf

Summary

• SDI / HD-SDI patch lead for Analogue and Digital signals
• Belden 6GHz precision video cable
• Precision "true" 75Ohm HD-SDI BNC connectors
• Black Heat shrink strain relief
• Options - cable length, labels, Deployable reel
