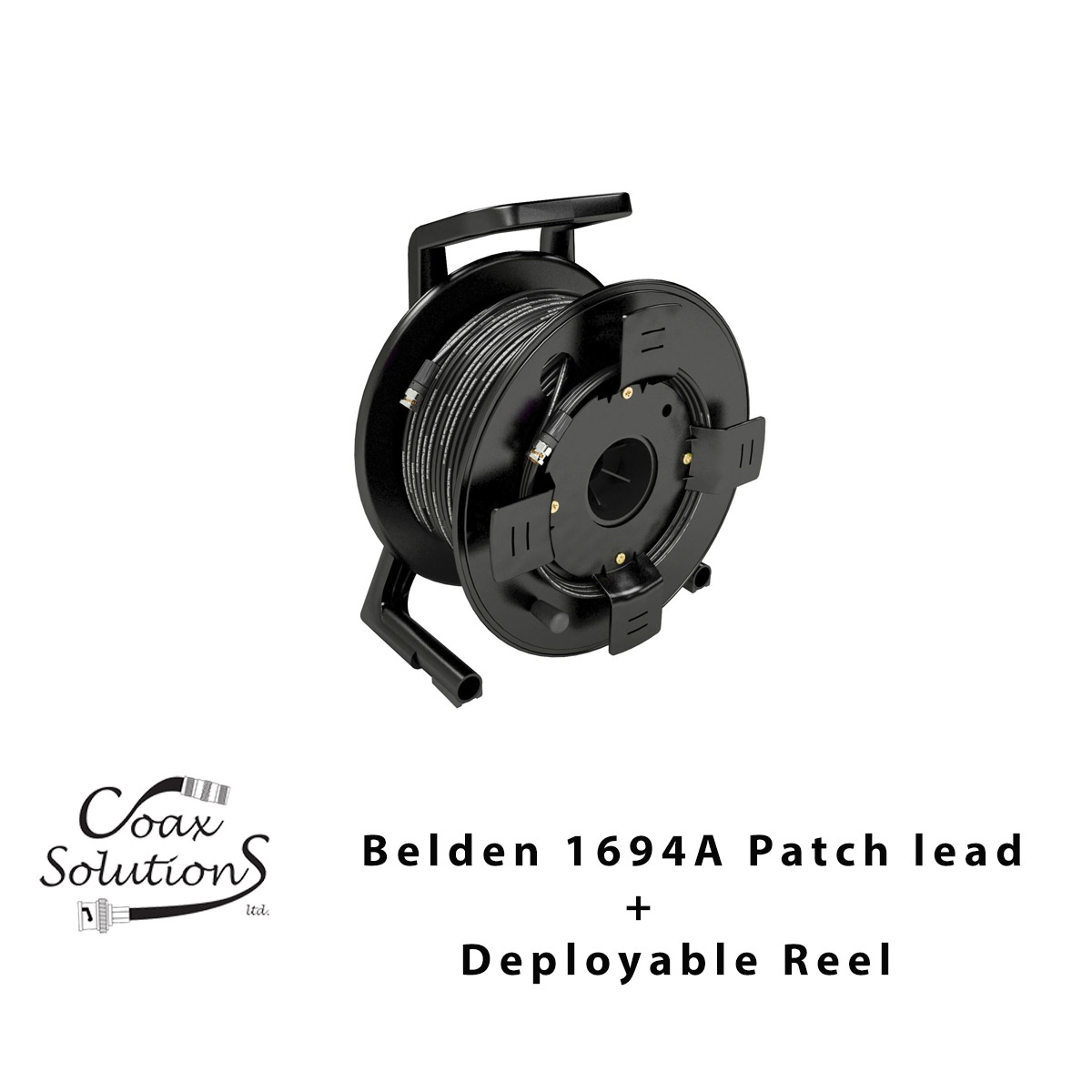

Belden 1694A HD-SDI Patch Cable + Deployable Reel

Belden 1694A HD-SDI Patch Cable + Deployable Reel
Product image
Information
Technical
Accessories

Introduction

HD-SDI patch cables using BELDEN 1694A 6GHz cable and precision BNC plugs. Supplied loaded on our size 2 (GT310) or size 3 (GT380) Deployable reels. The Deployable reel is made from synthetic rubber, which is impervious to chemicals, petrol & oil. The reel is supplied fitted with a winding flange on one side.These HD-SDI patch leads are assembled at our Harlow, Essex assembly facility under our proven quality control system.

Belden 1694A is a RG6 size low loss serial digital coax video cable (OD 6.96mm) suitable for longer run HD-SDI applications. Also suitable for older applications (composite, component & widescreen video)

Belden 1694A has 18awg conductor, Duofoil and tinned copper braid screens and a Black UV resistant PVC jacket suitable for indoor and outdoor use.

Application

1.      SMPTE ST292   (HD 1.5G-SDI)      1.5Gb/s

2.      SMPTE ST424   (HD  3G-SDI)         3Gb/s

Recommended maximum transmission distance

SMPTE ST292 & ST424 - Distance is based on 20dB loss at ½ clock frequency according to Belden data sheets

HD-1.5Gb/s     maximum distance is 112M

HD-3Gb/s        maximum distance is 78M

Options

Cable labels

Cable length

Deployable Reel

Technical information

Belden 1694A data sheet   1694A data sheet 31-1-20.pdf

Belden Recommended transmission distance table  digital-video-distance-chart-24-4-2019.pdf

Summary

  • SDI / HD-SDI patch lead for Analogue and Digital signals
  • Belden 6GHz precision video cable
  • Precision "true" 75Ohm BNC connectors
  • Black Heat shrink strain relief
  • Size 2 (GT310) Reel up to 50M
  • Size 3 (GT380) Reel 60M+
  • Options - cable length, labels, Deployable reel
Stock code CAS1403+REEL
Cable TypeBelden 1694A
Impedance75 Ohm
Frequency RangeDC-6GHz
Connector 'A'HD-SDI BNC Plug
Connector 'B'HD-SDI BNC Plug
ColourBLACK
JacketPVC
Options
  £139.44
Increase Quantity
Decrease Quantity
  £150.99
Increase Quantity
Decrease Quantity
  £162.53
Increase Quantity
Decrease Quantity
  £185.62
Increase Quantity
Decrease Quantity
  £211.21
Increase Quantity
Decrease Quantity
  £322.89
Increase Quantity
Decrease Quantity
  £345.98
Increase Quantity
Decrease Quantity
  £357.52
Increase Quantity
Decrease Quantity
  £369.07
Increase Quantity
Decrease Quantity
  £392.16
Increase Quantity
Decrease Quantity
  £415.25
Increase Quantity
Decrease Quantity
From £139.44
