Belden 1694ANH-500M

Belden 1694ANH-500M

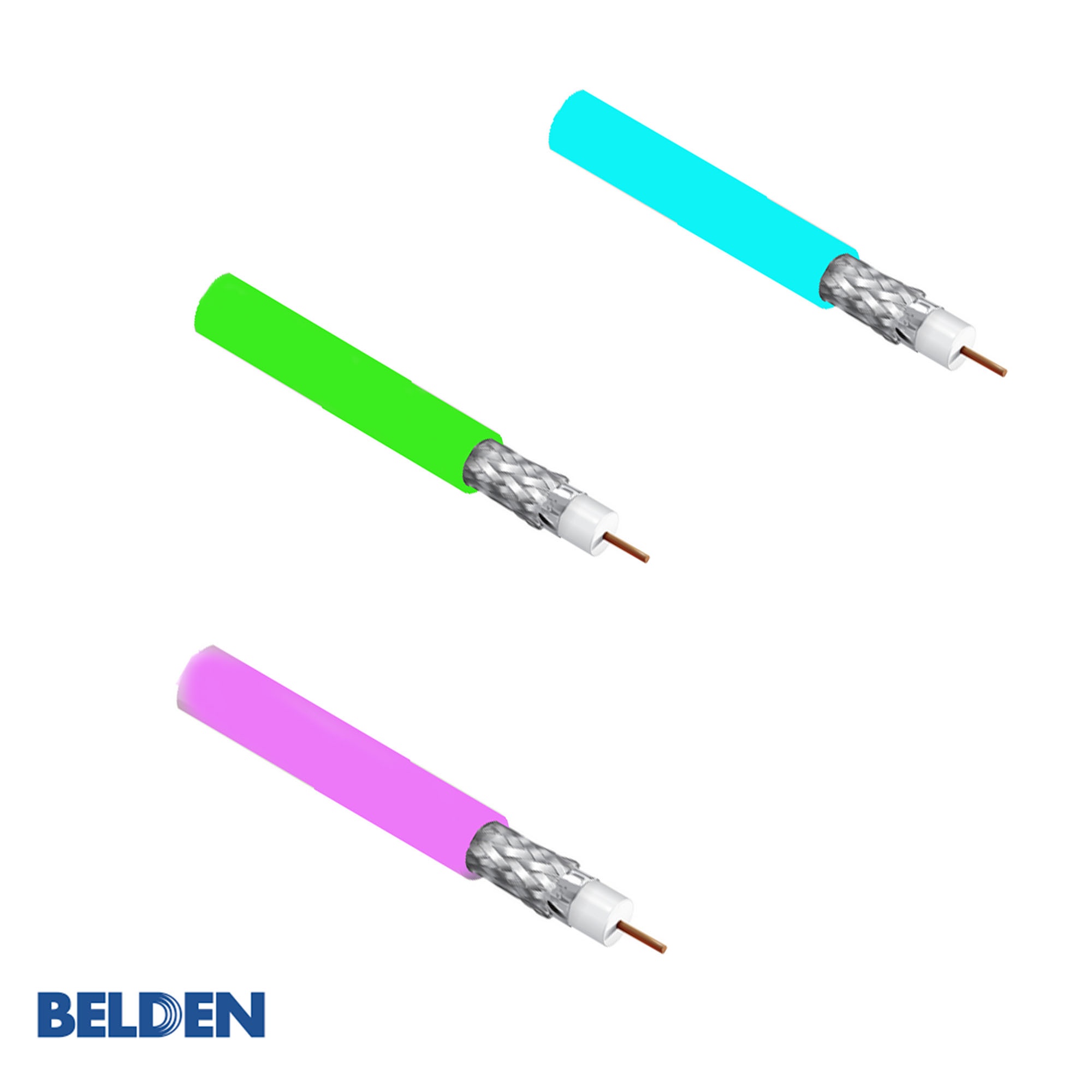

Product image
Information
Technical
Accessories

Belden 1694ANH -RG6U type low loss serial digital coax cable. LSZH (FRNC) Jacket. Suitable for SDI, HD-SDI and UHDTV applications to 6GHz.

  • LSZH (FRNC) Jacket
  • RG6 Type Serial Digital Coax cable
  • DC-6GHz
  • Suited to SDI, HD-SDI & UHDTV applications
  • OD 6.96mm
  • Supplied on 500M Reel
  • UV resistant- Indoor & outdoor use

Belden 1694ANH data sheet here:   Belden 1694ANH Data sheet.pdf

Belden Recommended transmission distance chart here: digital-video-distance-chart-24-4-2019.pdf

Stock code BELDEN1694ANH-500M
Cable TypeBelden 1694ANH
Impedance75 ohm
Frequency RangeDC-6GHz
ColourGREEN-TURQUOISE-VIOLET
JacketLSZH/FRNC
Reel Size500M
Precision BNC Plug Belden 1694A, 1694ANH, Image 1000, HD1000
Precision BNC Plug Belden 1694A, 1694ANH, Image 1000, HD1000 £1.10
Colour:

Call for current price and availability
