Belden 1694F Patch Cable + Deployable Reel

Belden 1694F Patch Cable + Deployable Reel
Information
Technical
Accessories

Introduction

HD-SDI patch cables using BELDEN 1694F 6GHz precision SDI video cable and precision BNC plugs. These HD-SDI patch leads are assembled at our Harlow, Essex assembly facility under our proven quality control system.

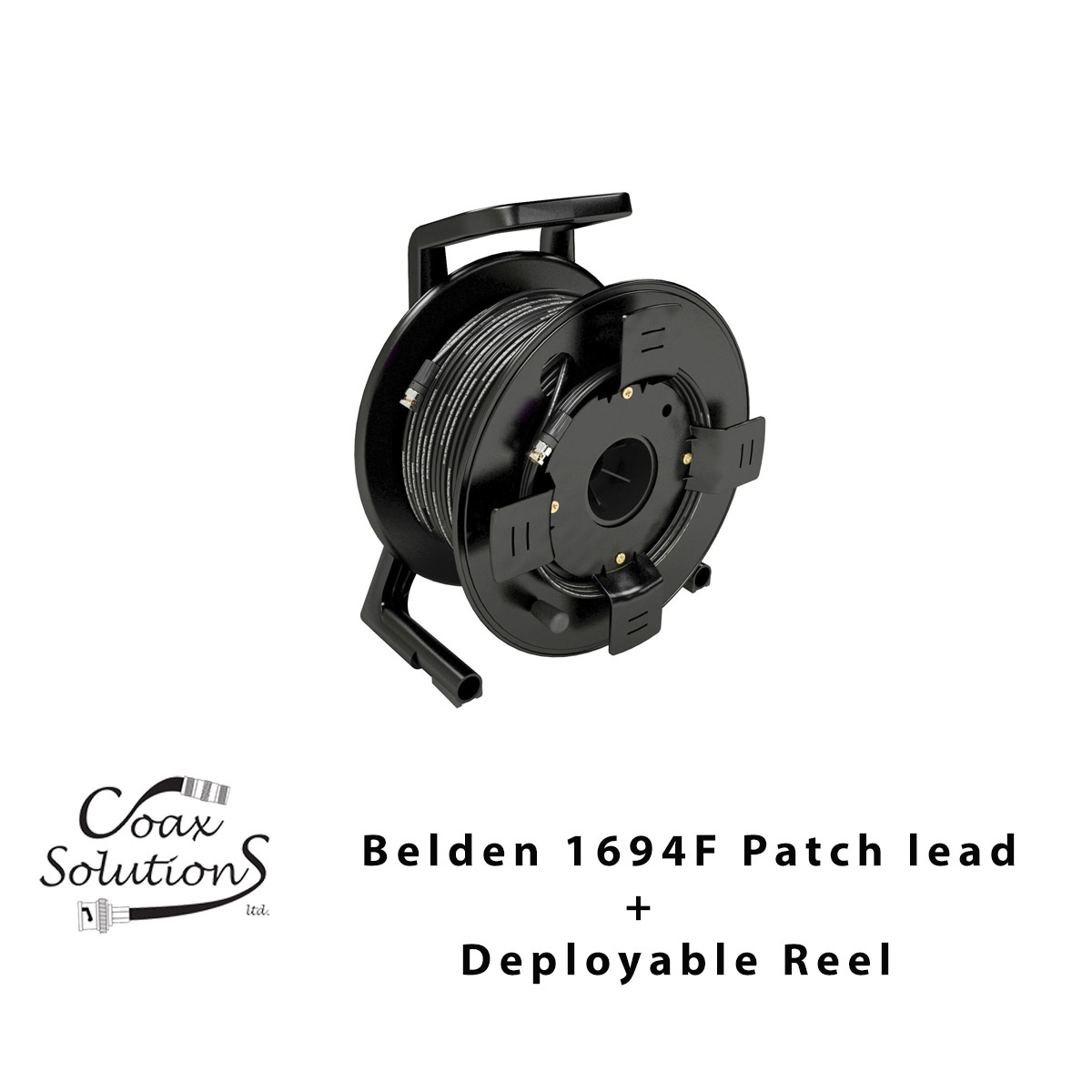

Supplied loaded on our size 2 (GT310) Deployable reel. The Deployable reel is made from synthetic rubber, which is impervious to chemicals, petrol & oil. The reel is supplied fitted with a winding flange on one side

Belden 1694F is a RG6 size, Flexible low loss serial digital coax video cable (OD 7.01mm) suitable for HD-SDI applications. Belden 1694F patch leads are also suitable for older video applications. (composite, component & widescreen video)

Belden 1694F has a 19awg stranded bare copper conductor, double tinned copper braid screens and a Black PVC jacket suitable for indoor use. It is not recommended for outdoor or plenum applications.

Application

1.      SMPTE ST292    (HD 1.5G-SDI)      1.5Gb/s

2.      SMPTE ST424   (HD  3G-SDI)         3Gb/s

Recommended maximum transmission distance

SMPTE ST292 & ST424 - Distance is based on 20dB loss at ½ clock frequency according to Belden data sheets

HD-1.5Gb/s     maximum distance is 79M

HD-3Gb/s        maximum distance is 53M

Options

Cable labels

Cable length

Deployable Reel

Technical information

Belden 1694F data sheet     1694F data sheet 31-1-20.pdf

Belden Recommended transmission distance table  digital-video-distance-chart-24-4-2019.pdf

Summary

  • SDI / HD-SDI patch lead for Analogue and Digital signals
  • RG6 Flexible low loss coax cable
  • Belden 1694F 6GHz precision video cable
  • Precision "true" 75Ohm HD-SDI BNC connectors (4.5GHz)
  • Black Heat shrink strain relief
  • Options - cable length, labels, Deployable reel
Stock code CAS1669+REEL
Cable TypeBELDEN 1694F
Impedance75 Ohm
Frequency RangeDC-4.5GHz
Connector 'A'BNC PLUG HD-SDI
Connector 'B'BNC PLUG HD-SDI
ColourBLACK
Reel SizeSIZE 2 GT310
Options
  £189.57
Increase Quantity
Decrease Quantity
  £207.07
Increase Quantity
Decrease Quantity
  £224.57
Increase Quantity
Decrease Quantity
  £259.57
Increase Quantity
Decrease Quantity
  £278.73
Increase Quantity
Decrease Quantity
  £296.23
Increase Quantity
Decrease Quantity
From £189.57
