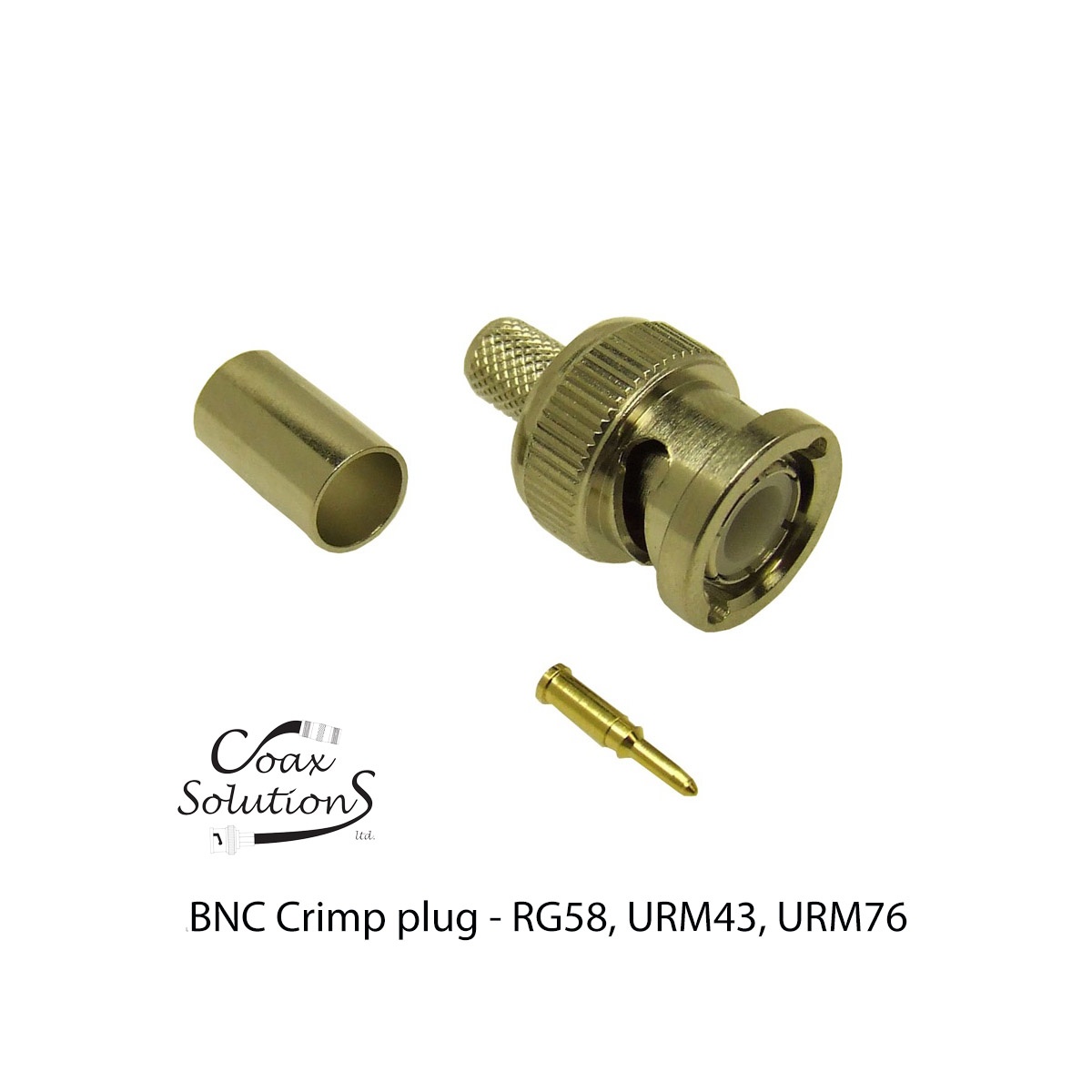

BNC Crimp plug RG58 (Die cast)

BNC Crimp plug RG58 (Die cast)
Information
Technical
Accessories

Description

BNC crimp plug RG58. Bayonet locking coaxial connector.

BNC 50ohm straight crimp plug (male) made IAW MIL-C-39012

Suitable Coax Cables

RG58CU, URM43, URM76, Belden 9907

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001(A)

Applications

HAM Radio. Broadcast.Instrumentation.Communications.

Stock code BNC1050010D
Contact Hex 1.72mm (0.068)
Ferrule Hex 5.41mm (0.213)
Crimp ToolCRT1001 or CRT1001A
Cable TypeRG58, URM43, URM76, Belden 9907
Impedance50 Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
