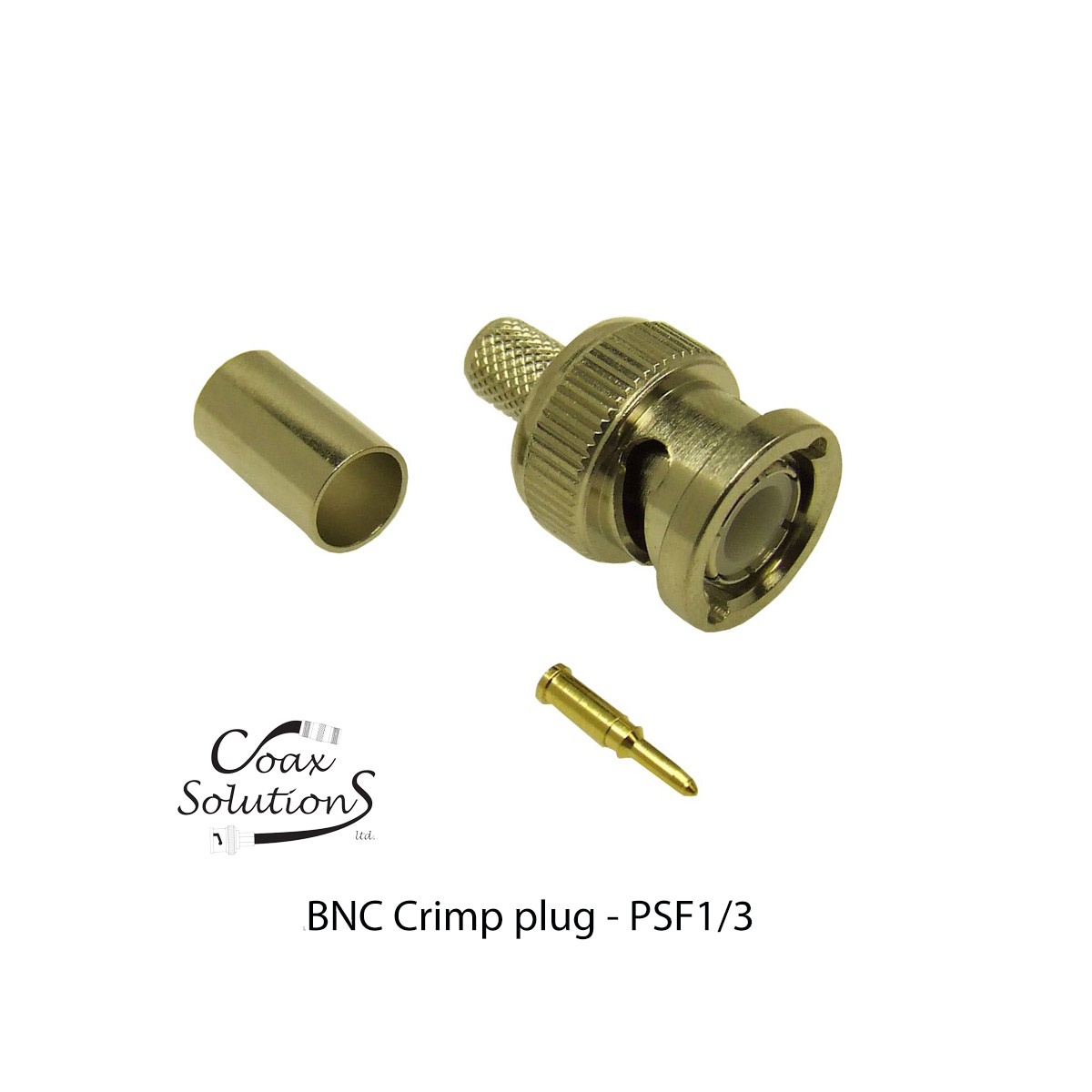

BNC Crimp plug PSF1/3

BNC Crimp plug PSF1/3
Information
Technical
Accessories

Description

BNC crimp plug PSF1/3. Bayonet locking coaxial connector.

BNC 75ohm straight crimp plug (male) made IAW MIL-C-39012

Suitable Coax Cables

BBC Type PSF1/3 & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001

Applications

Broadcast.  Analogue Video

Stock code BNC1050066
Contact Hex 1.72mm
Ferrule Hex 5.41mm
Crimp ToolCRT1001/1001A
Cable TypePSF 1/3
Impedance75Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Quantity:Increase QuantityDecrease Quantity
£0.83
