Amphenol BNC Panel Jack 112288-11

Amphenol BNC Panel Jack 112288-11

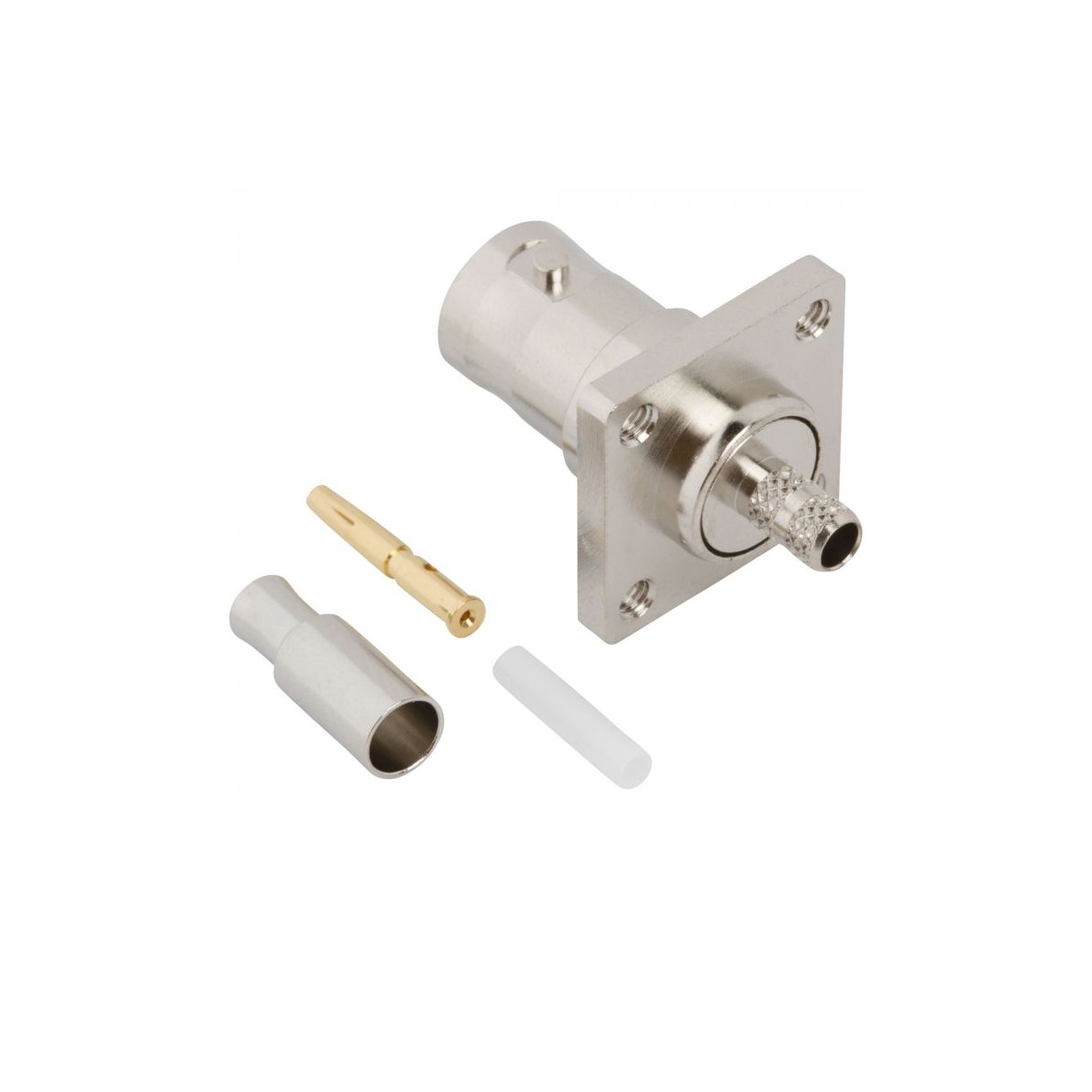

Product image

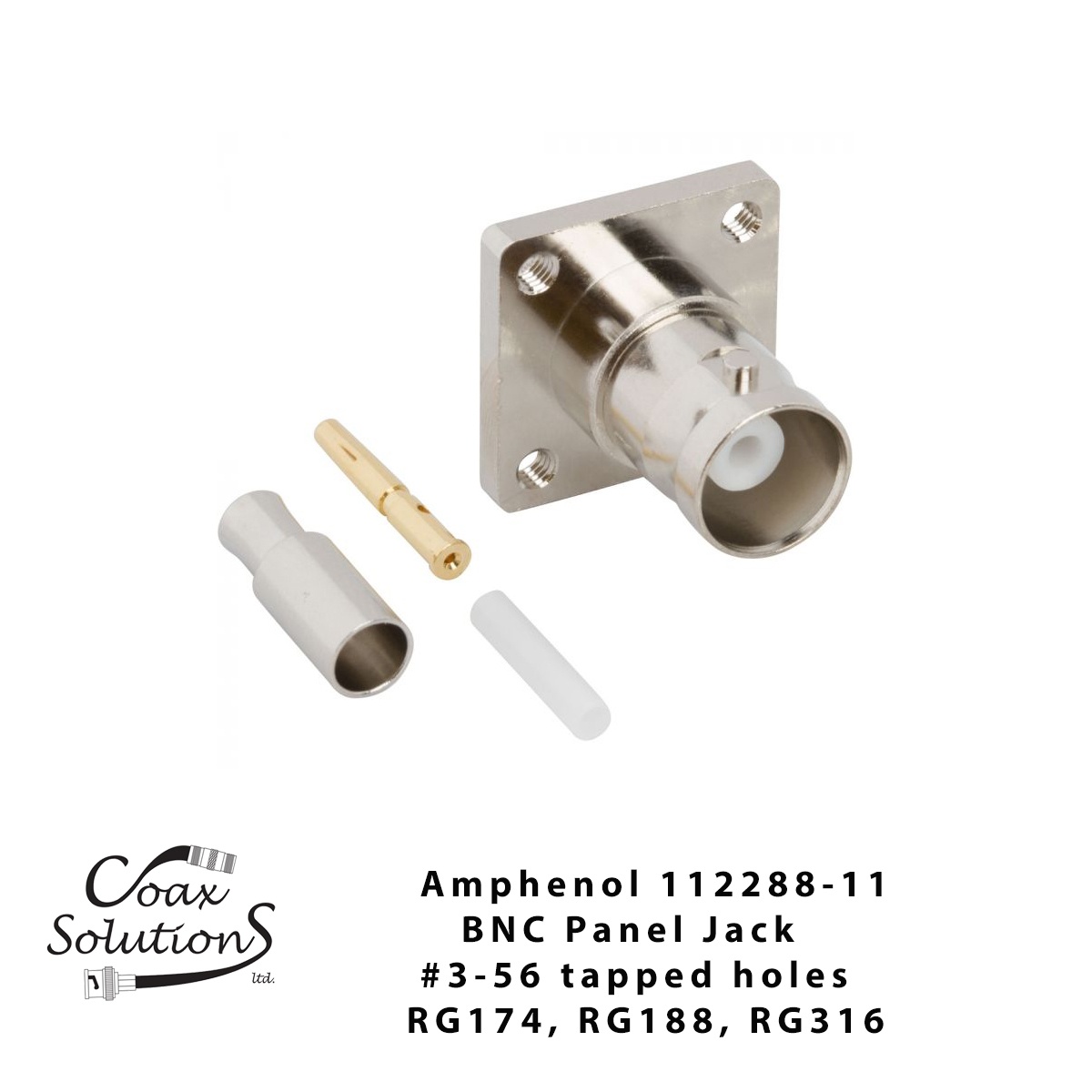

Product image
Information
Technical
Accessories
Product Specifications
Body Finish Nickel
Body Material Brass
Cable Type (Terminates to) RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Crimp
Coupling Mechanism Bayonet
Crimp Tool 47-10150
Export Control Classification Number EAR99
Frequency (Max GHz) 4
Gender Jack
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Straight
Panel Mounting Feature 4-Hole Flange
Ports 1 (Single Port)
Size Category Miniature
Temp (Max Degrees Celsius) 85
Temp (Min Degrees Celsius) -40
Termination Style Cable - Crimp
Stock code BNC3250014
Cable TypeRG174, Rg188, Rg316
Impedance50 ohm
Body PlatingBrass, Nickel
Contact PlatingPhos. Bronze, Gold
InsulatorTeflon
Quantity:Increase QuantityDecrease Quantity
£3.76
