BNC Crimp jack RG179

BNC Crimp jack RG179
Information
Technical
Accessories

Description

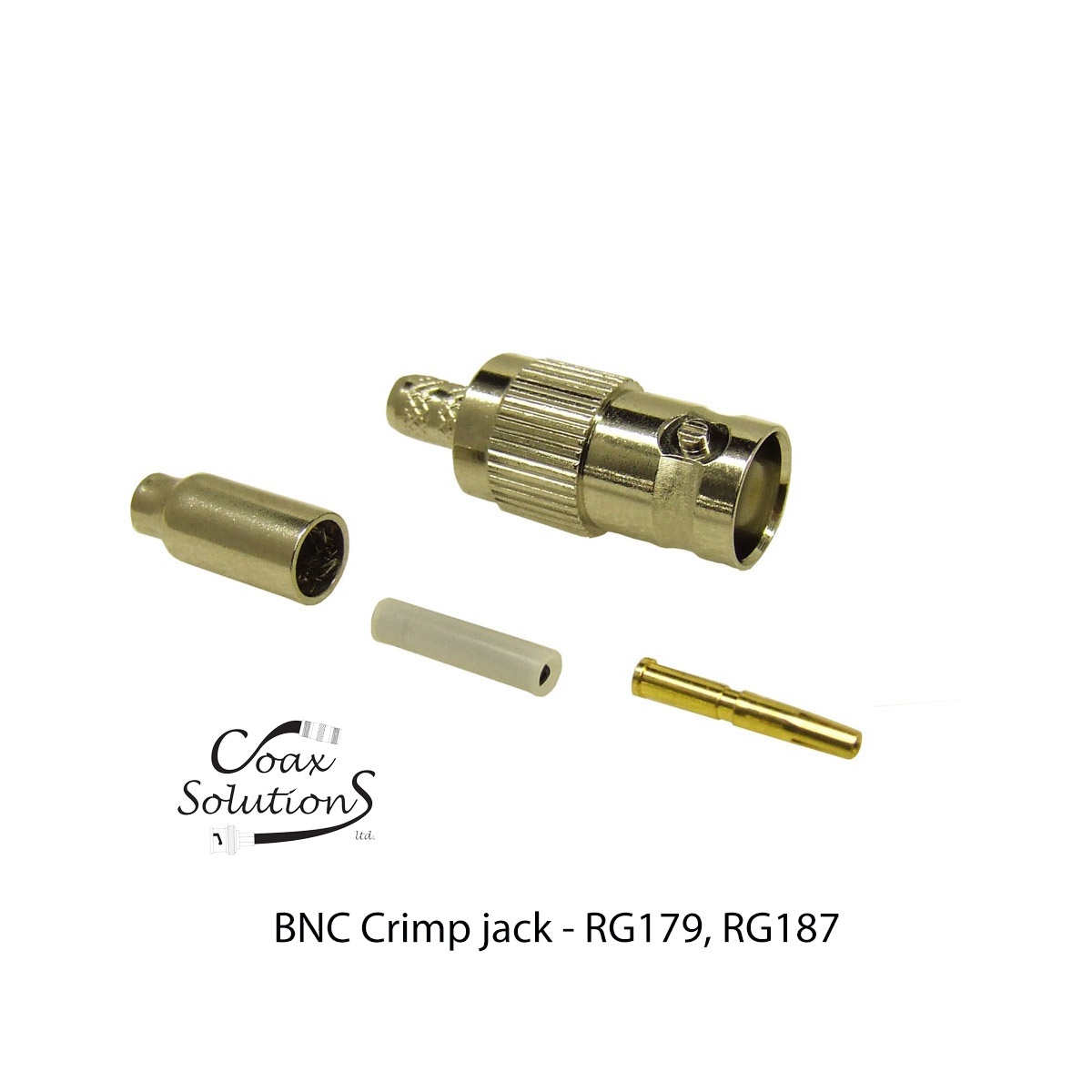

BNC crimp jack RG179. Bayonet locking coaxial connector.

BNC 75ohm straight crimp plug (male) made IAW MIL-C-39012

4 part connector with pusher sleeve

Suitable Coax Cables

RG179, RG187 & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 1.72mm

Ferrule - 5.41mm

Crimp tool - CRT1001A

Applications

Broadcast. Video. CCTV. Security

Stock code BNC2050070
Contact Hex 1.72mm
Ferrule Hex 5.41mm
Crimp ToolCRT1001/1001A
Cable TypeRG179, RG187
Impedance75Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
