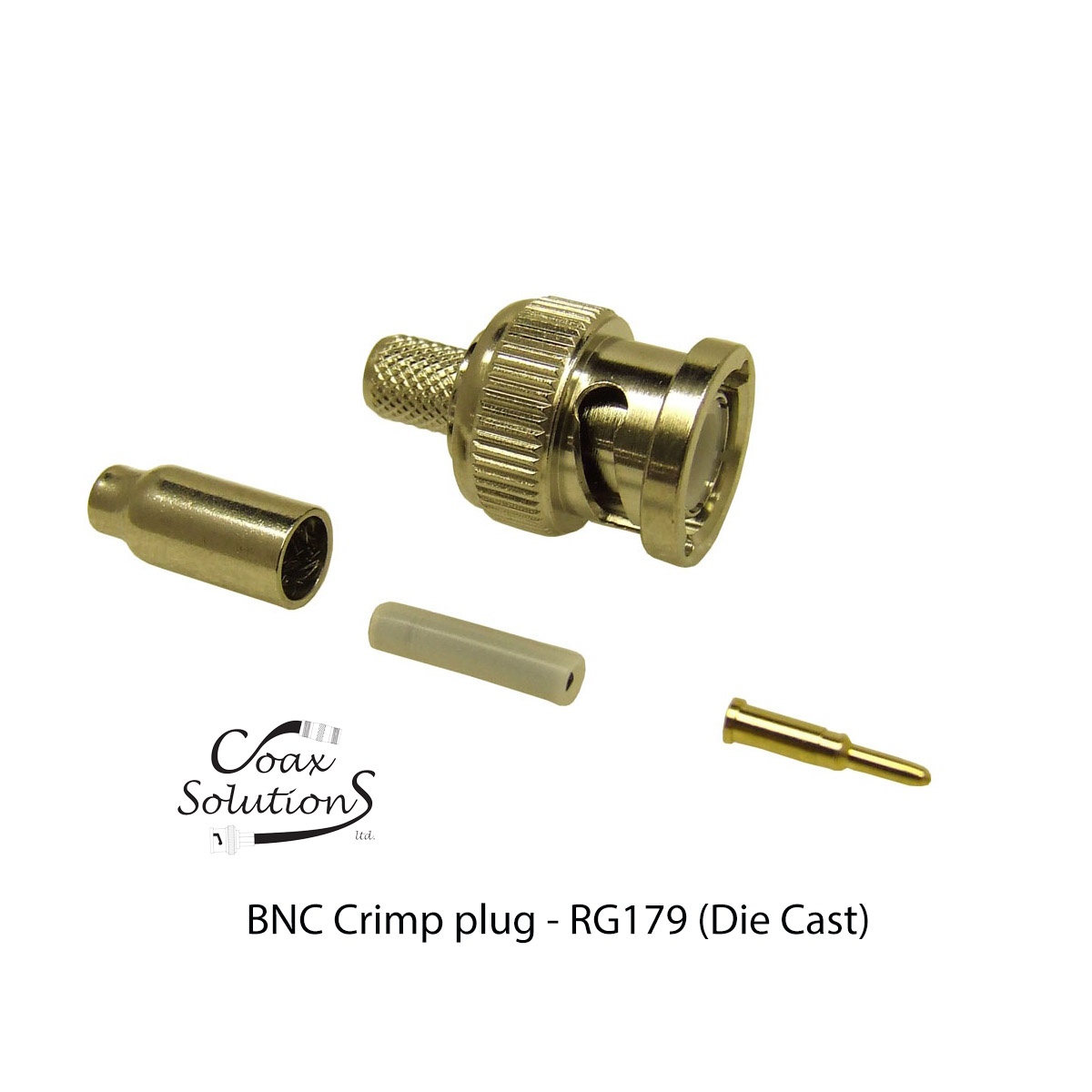

BNC Crimp plug RG179 (Die cast)

BNC Crimp plug RG179 (Die cast)
Information
Technical
Accessories

Description

BNC crimp plug RG179. Bayonet locking coaxial connector.

BNC 75ohm straight crimp plug (male) made IAW MIL-C-39012

4 part connector using "pusher" sleeve

Suitable Coax Cables

RG179, RG187 & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001

Applications

Broadcast. SDI applications (max 1Ghz) CCTV, Video

Stock code BNC1050070D
Contact Hex 1.72mm
Ferrule Hex 5.41mm
Crimp ToolCRT1001/1001A
Cable TypeRG179, RG187
Impedance75Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-1GHz
RG179 LSOH Plug to Plug 1.0M
RG179 LSOH Plug to Plug 1.0M £3.65
RG179 LSOH Plug to Plug 5.0M
RG179 LSOH Plug to Plug 5.0M £4.67
RG179 LSOH Plug to Plug 10.0M
RG179 LSOH Plug to Plug 10.0M £6.94
CRT1001A
CRT1001A £21.00
Strain Relief Boot 03 - RG174, RG179, RG316 ...
Strain Relief Boot 03 - RG174, RG179, RG316 ... £0.12
RG179 (LSOH) -100M
RG179 (LSOH) -100M £42.00
Quantity:Increase QuantityDecrease Quantity
£0.63
