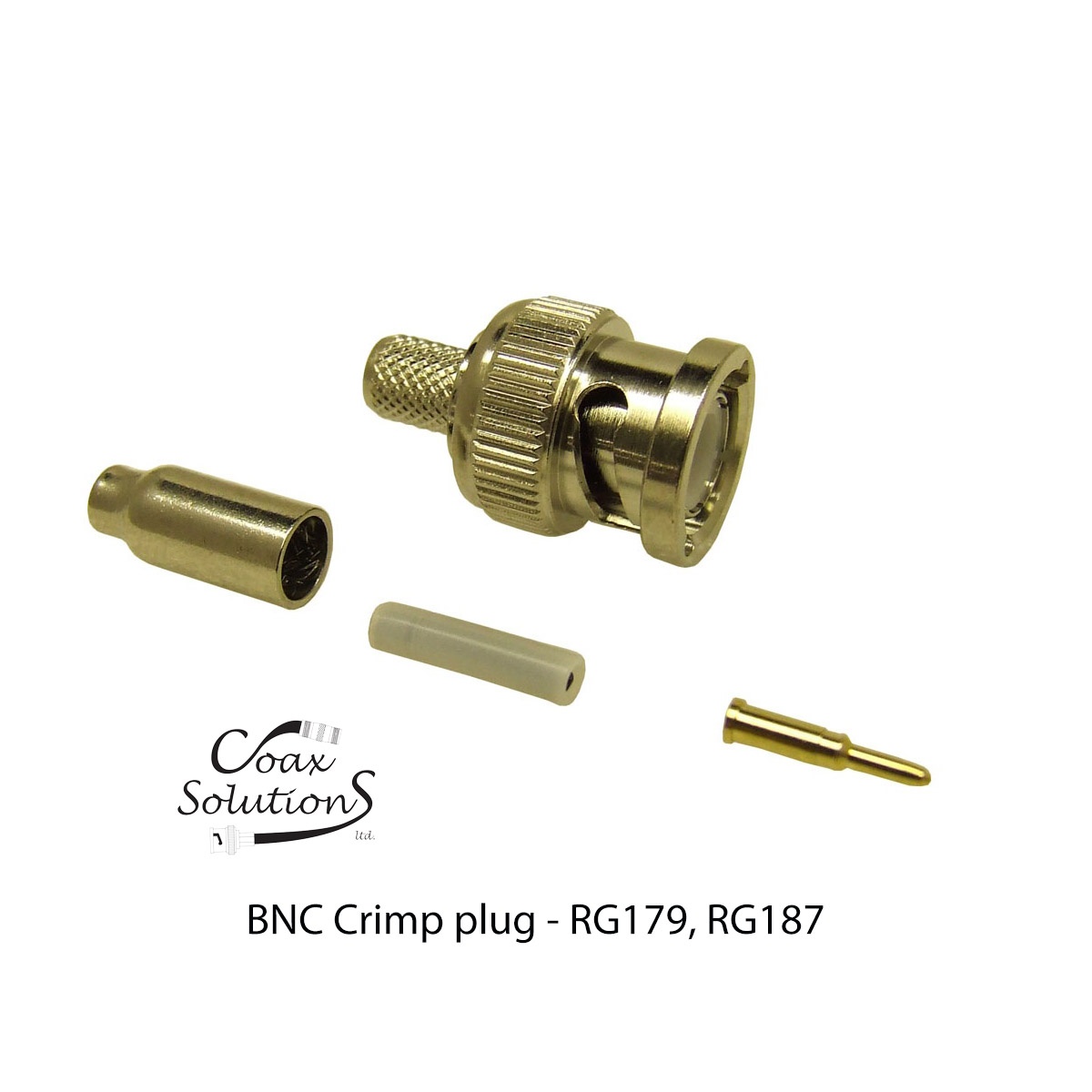

BNC Crimp plug RG179, RG187

BNC Crimp plug RG179, RG187
Information
Technical
Accessories

Description

BNC crimp plug RG179. Bayonet locking coaxial connector.

BNC 75ohm straight crimp plug (male) made IAW MIL-C-39012

Turned Body , 4 part connector using "pusher" sleeve

Suitable Coax Cables

RG179, RG187 & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Brass - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001

Applications

Broadcast. SDI applications (max 1Ghz) CCTV, Video

Stock code BNC1050070
Contact Hex 1.72mm
Ferrule Hex 5.41mm
Crimp ToolCRT1001/1001A
Cable TypeRG179, RG187
Impedance75Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
