RG59MINI-WHITE-100M

RG59MINI-WHITE-100M
Product image
Product image
Information
Technical
Accessories

Description

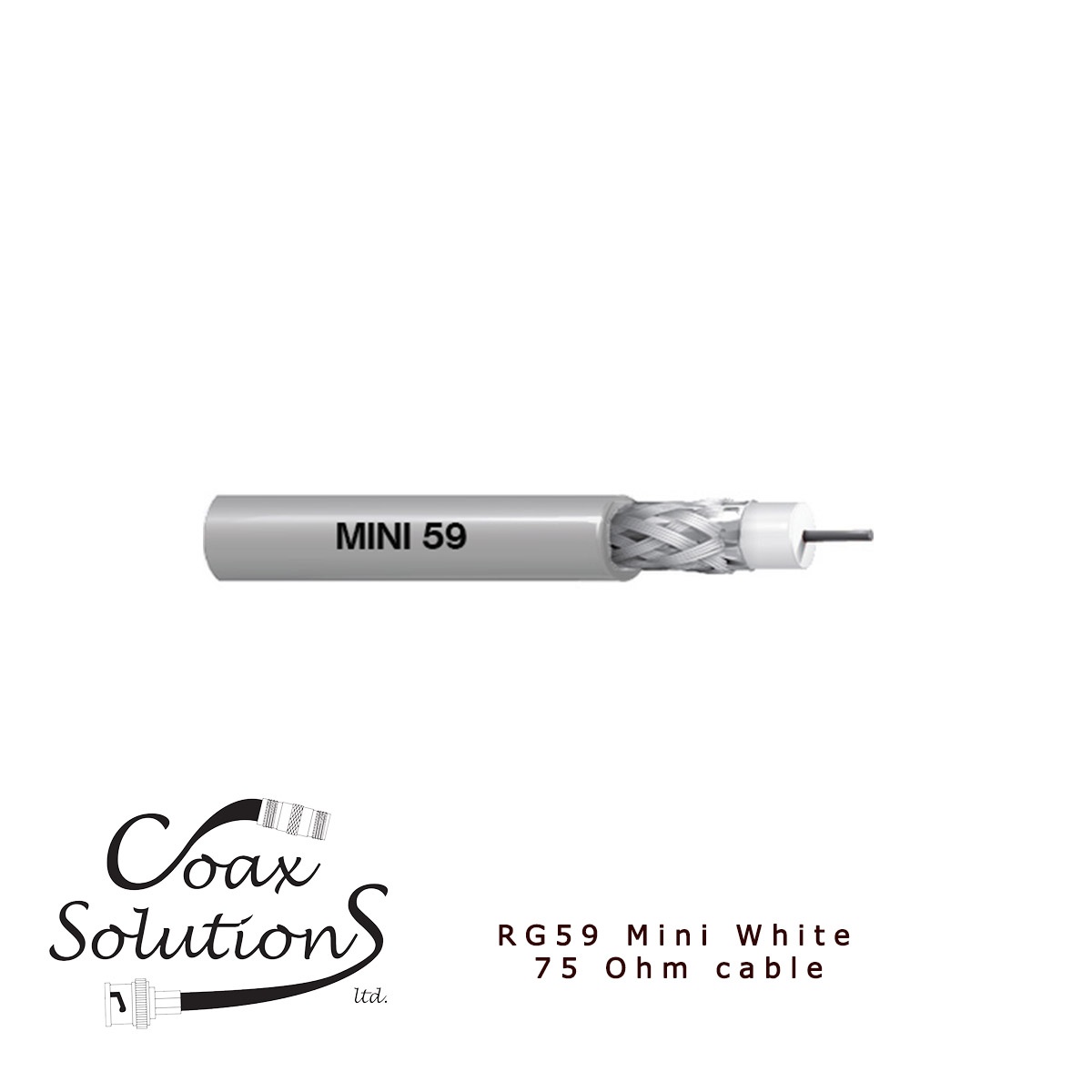

RG59 Mini White Flexible ,75 Ohm coax cable

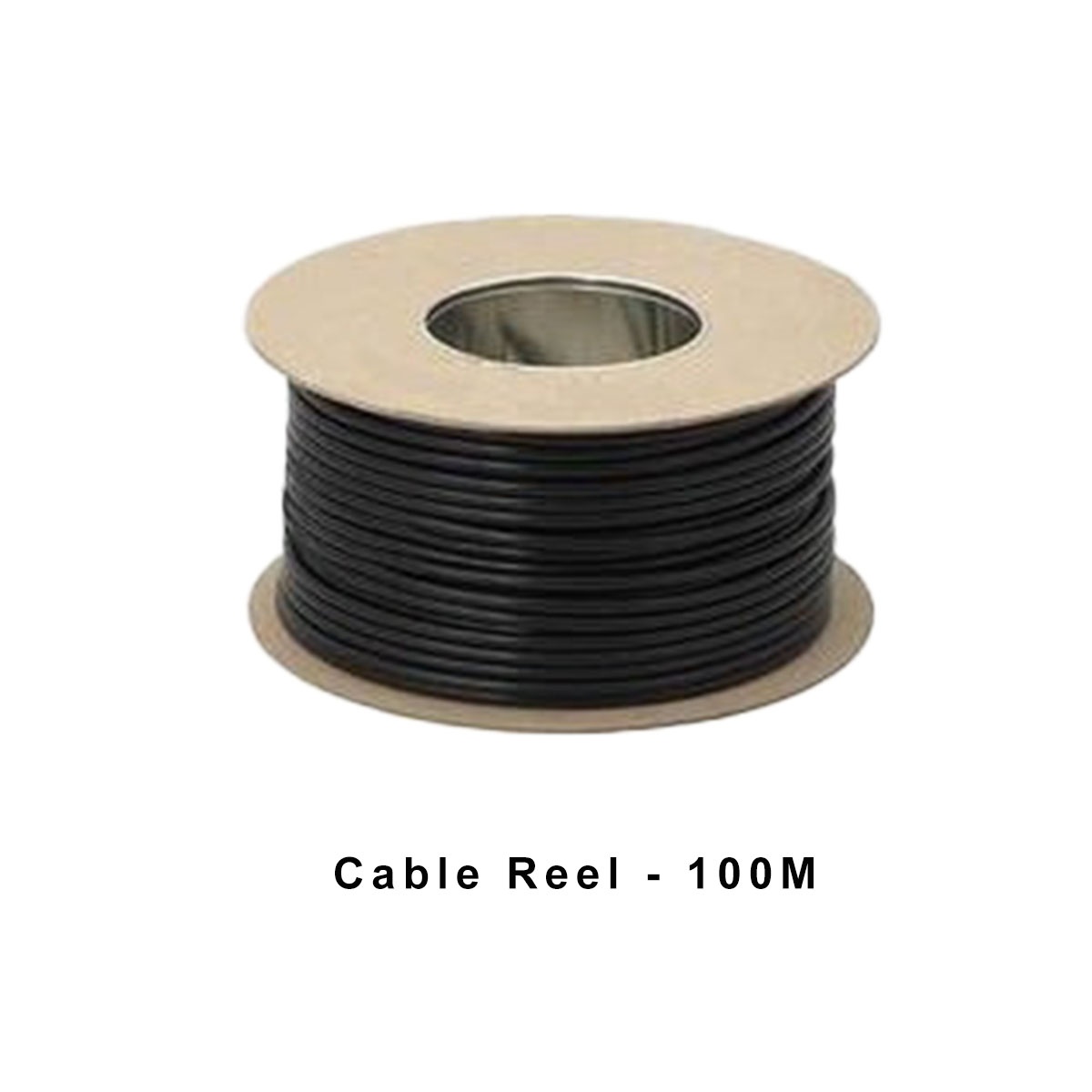

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 1/0.41mm Copper Clad Steel

Dielectric: Gas injected PE insulation (1.90mm)

Screen 1: Bonded Aluminium foil tape (coverage 115%)

Screen 2: Tinned copper wire braid (coverage >55%)

Sheath: White PVC (3.60mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <352 Ohm/Km

Characteristic impedance: 75+/- 5 Ohm

Capacitance: 55pF/m (nominal)

Velocity ratio: 0.81

Attenuation (dB 100m @20 Deg C)             50MHz       <11.50

                                                                     100MHz     <15.50

                                                                      200MHz    <21.50

                                                                     400MHz     <31.50

                                                                     500MHz     <17.00

                                                                     600MHz     <37.00

                                                                     800MHz     <44.50

                                                                    1000MHz    <51.00

                                                                    1750MHz     <63.00

Environmental

Storage/Operating Temperature:  +70Deg C

Typical RG59 Mini White Coaxial Connectors

BNC.

Applications

Low power baseband video. RF signals. Broadcast. CCTV

Links

RG59 Mini White Cable Assemblies

RG59 Mini White Coaxial Connectors

RG59 Mini White Crimp Tools

RG59 Mini White Strain relief boots

Stock code RG59MINI-WHITE-100M
Cable TypeRG59MINI-WHITE
Impedance75 Ohm
ColourWhite
ConductorCCSW 1/0.41
DielectricGas Injected PE (1.90mm)
Screen (1)Bonded Aluminium tape
Screen (2)SnCU wire braid
JacketPVC (3.60mm)
Reel Size100M
Quantity:Increase QuantityDecrease Quantity
£30.00
