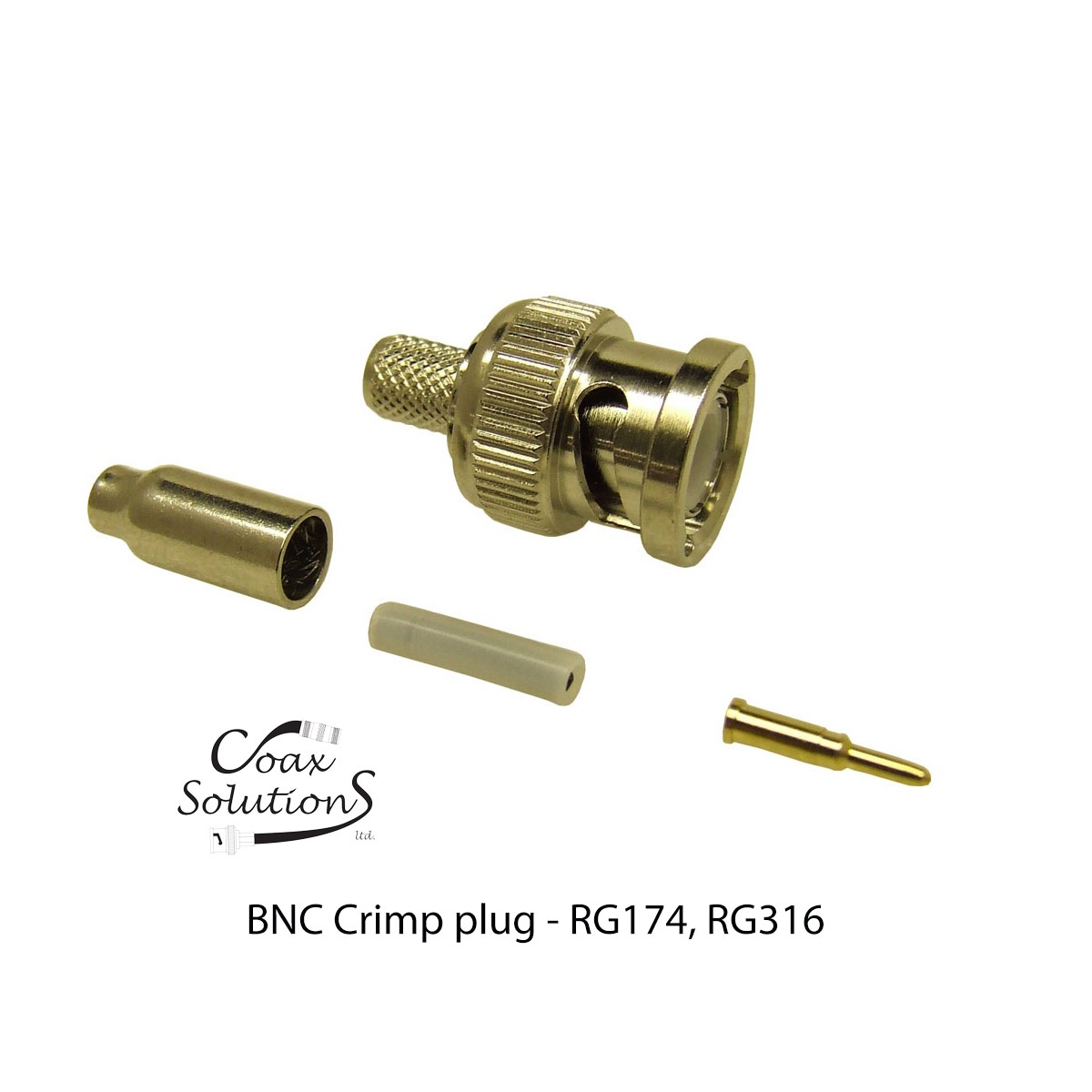

BNC Crimp plug RG174, RG316

BNC Crimp plug RG174, RG316
Information
Technical
Accessories

Description

BNC crimp plug RG174. Bayonet locking coaxial connector.

BNC 50ohm straight crimp plug (male) made IAW MIL-C-39012

Suitable Coax Cables

RG174, RG316, RG188 & Equivalent cables

Material

Pin - Brass - Gold plated

Ferrule - Brass - Nickel plated

Body - Zinc Alloy - Nickel plated

Insulator - Delrin

Tooling

Pin - 0.068" (1.72mm)

Ferrule - 0.213" (5.41mm)

Crimp tool CRT1001(A)

Applications

HAM Radio. Antenna Pigtail. Broadcast. Instrumentation

Stock code BNC1050014
Contact Hex 1.72mm (0.068
Ferrule Hex 5.41mm (0.213
Crimp ToolCRT1001/1001A
Cable TypeRG174, RG316, RG188
Impedance50Ohms
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
CRT1001A
CRT1001A £21.00
Strain Relief Boot 03 - RG174, RG179, RG316 ...
Strain Relief Boot 03 - RG174, RG179, RG316 ... £0.12
RG174-100M Reel
RG174-100M Reel £25.00
Quantity:Increase QuantityDecrease Quantity
£0.73
