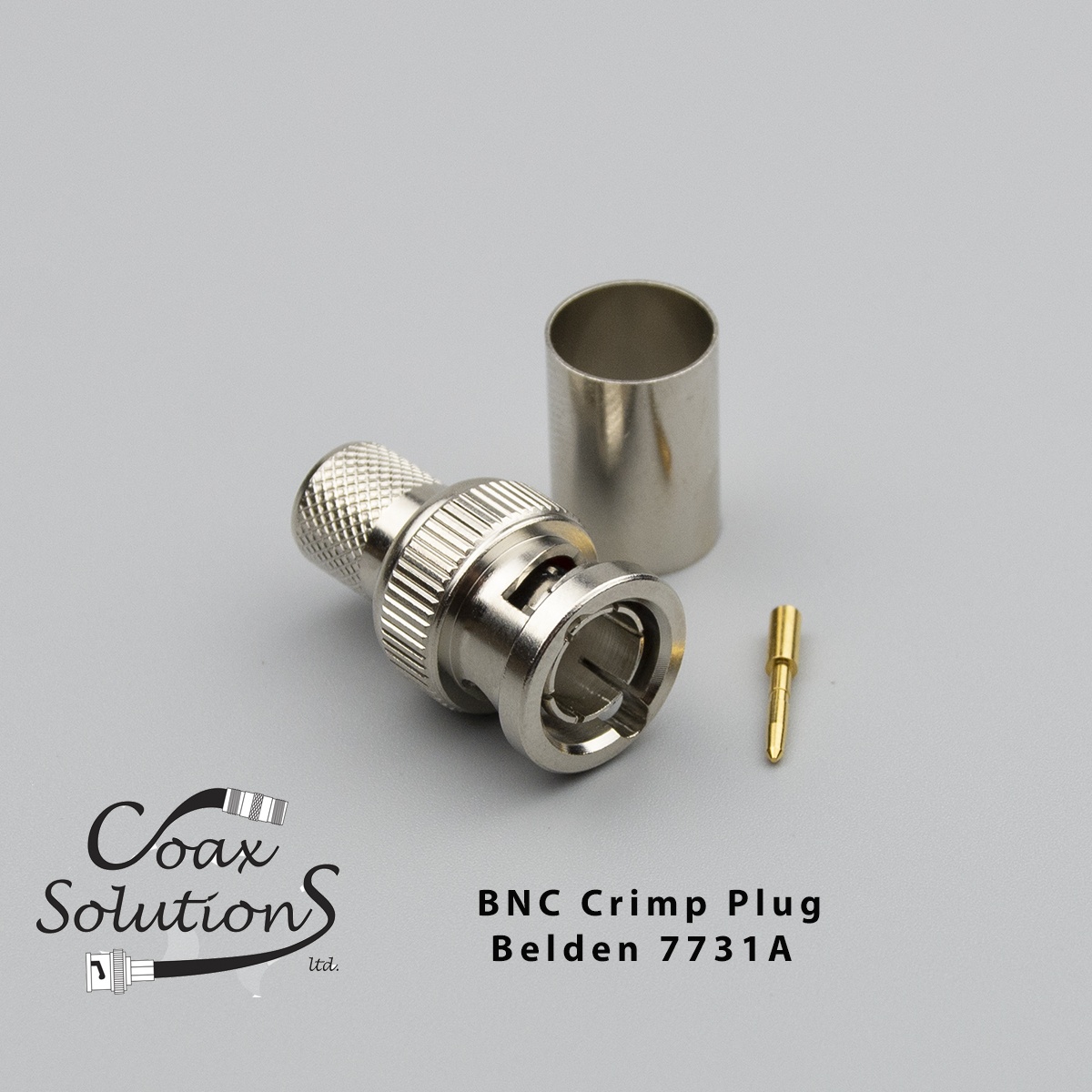

Precision BNC Plug Belden 7731A

Precision BNC Plug Belden 7731A
Product image
Information
Technical
Accessories

A Precision BNC Plug designed specifically for Broadcast applications, meeting the requirements of the Serial digital Interface (SDI) and related High Definition Serial digital Interface (HD-SDI) and 4K UHD specifications.

These Precision BNC plugs offer a true 75 Ohm impedance and are suitable for use with Belden 7731A and other similar sized cables( Image 2000 for example). They give excellent VSWR and return loss figures.

We also offer pre terminated Belden 7731A  Patch leads and a bespoke cable assembly service for all our precision BNC plugs.

  • Frequency range: DC to 12GHz
  • Impedance: 75 Ohm
  • Temperature range: -55 to +85 Deg C
  • Body: Brass, Nickel plated
  • Coupling nut: Brass,  Nickel plated
  • Dielectric: Delrin
  • Ferrule: Brass, Nickel plated
  • Pin: Brass, Gold plated

 Suitable cables: Belden 7731A and similar sized alternatives.

Stock code BNC1050089HD
Contact Hex 1.73mm
Ferrule Hex 9.75mm
Crimp ToolTBA
Cable TypeBelden 7731A
Impedance75 Ohm
Body PlatingNickel
Contact PlatingGold
InsulatorDelrin
Frequency RangeDC-12GHz
HD-SDI Crimp Tool - Belden 1794A & 4794R
HD-SDI Crimp Tool - Belden 1794A & 4794R £122.00
Quantity:Increase QuantityDecrease Quantity
£1.94

If you can't find the Product or Cable Assembly you are looking for on our website, please contact our Sales team who will be able to offer a solution.

 Please note that all Prices (£) are Ex VAT and Delivery Charges
