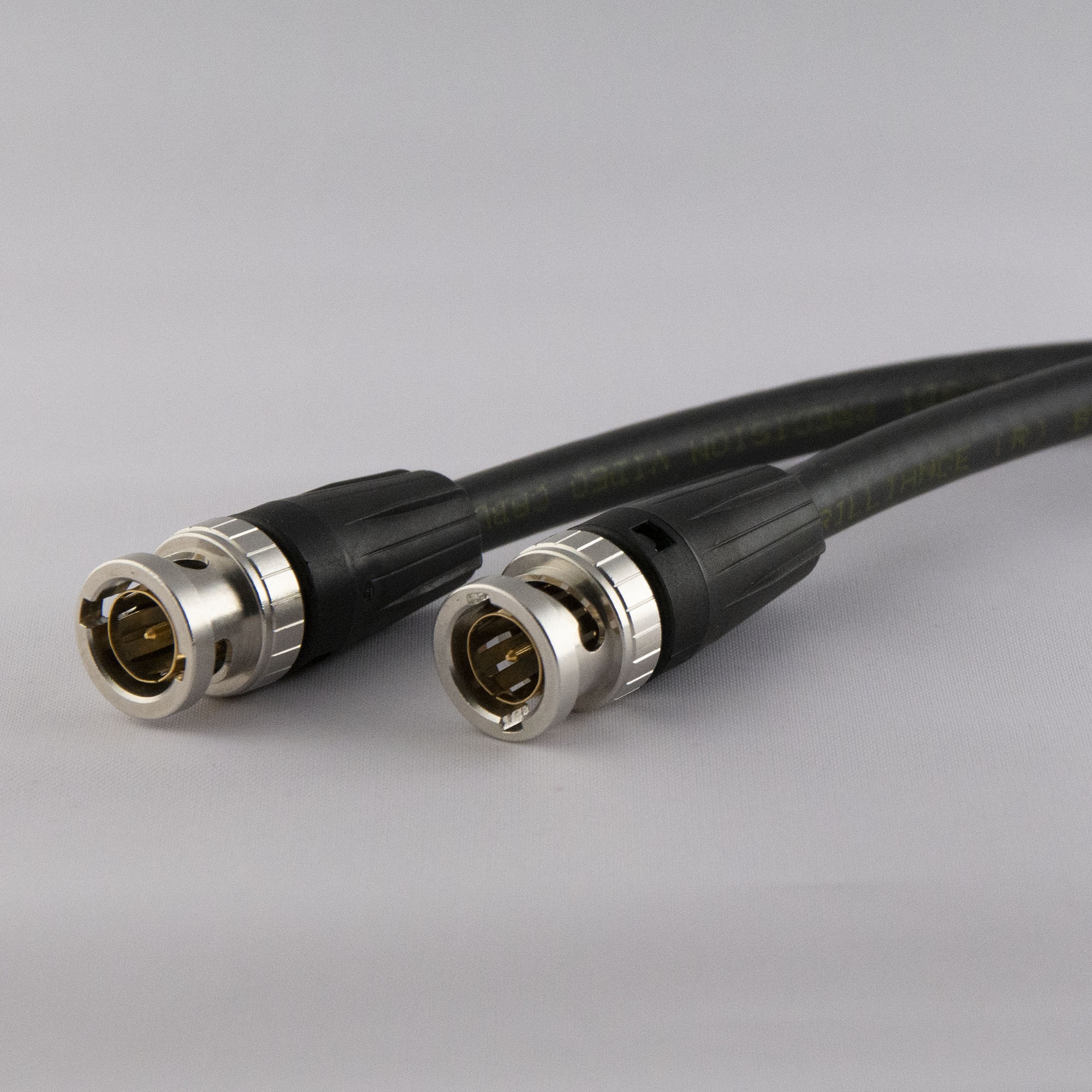

Neutrik rear Twist HD BNC Cable assembly - Belden 1694A

Neutrik rear Twist HD BNC Cable assembly - Belden 1694A
Product image
Product image
Product image
Information
Technical
Accessories

Precision video patch leads suitable for SD-SDI (SMPTE ST259),HD 1.5G-SDI (SMPTE ST292) and HD 3G-SDI (SMPTE ST424) applications.

Our patch leads are assembled at our Harlow assemblyfacility, using Belden 1694A Serial Digital cable and Neutrik NBNC75BTU11 reartwist HD BNC connectors.

Recommended transmission distance for Belden 1694A are asfollows:

SD-SDI (SMPTE ST259) Data rate   360 Mb/s = 367M

HD-SDI (SMPTE ST292) Data rate   1.5 Gb/s =  112M

HD-SDI (SMPTE ST424) Data rate      3Gb/s  =  78M

Belden 1694A recommended transmission distance table here: digital-video-distance-chart-24-4-2019.pdf

  • Belden 1694A Serial Digital Cable
  • Neutrik rear twist HD BNC (NBNC75BTU11)
  • Black Boots (coloured boot option)
  • Suitable for use up to 3Gb/s
  • Assembled in the UK
Belden 1694A data sheet here: Belden 1694A Data sheet.pdf
Neutrik NBNC75BTU11 data sheet here:  nbnc75btu11.pdf
Stock code CAS1658
Cable TypeBELDEN 1694A
Impedance75 Ohm
Frequency RangeDC to 3GHz
Connector 'A'NBNC75BTU11
Connector 'B'NBNC75BTU11
ColourBLACK (BOOT)
