Introduction

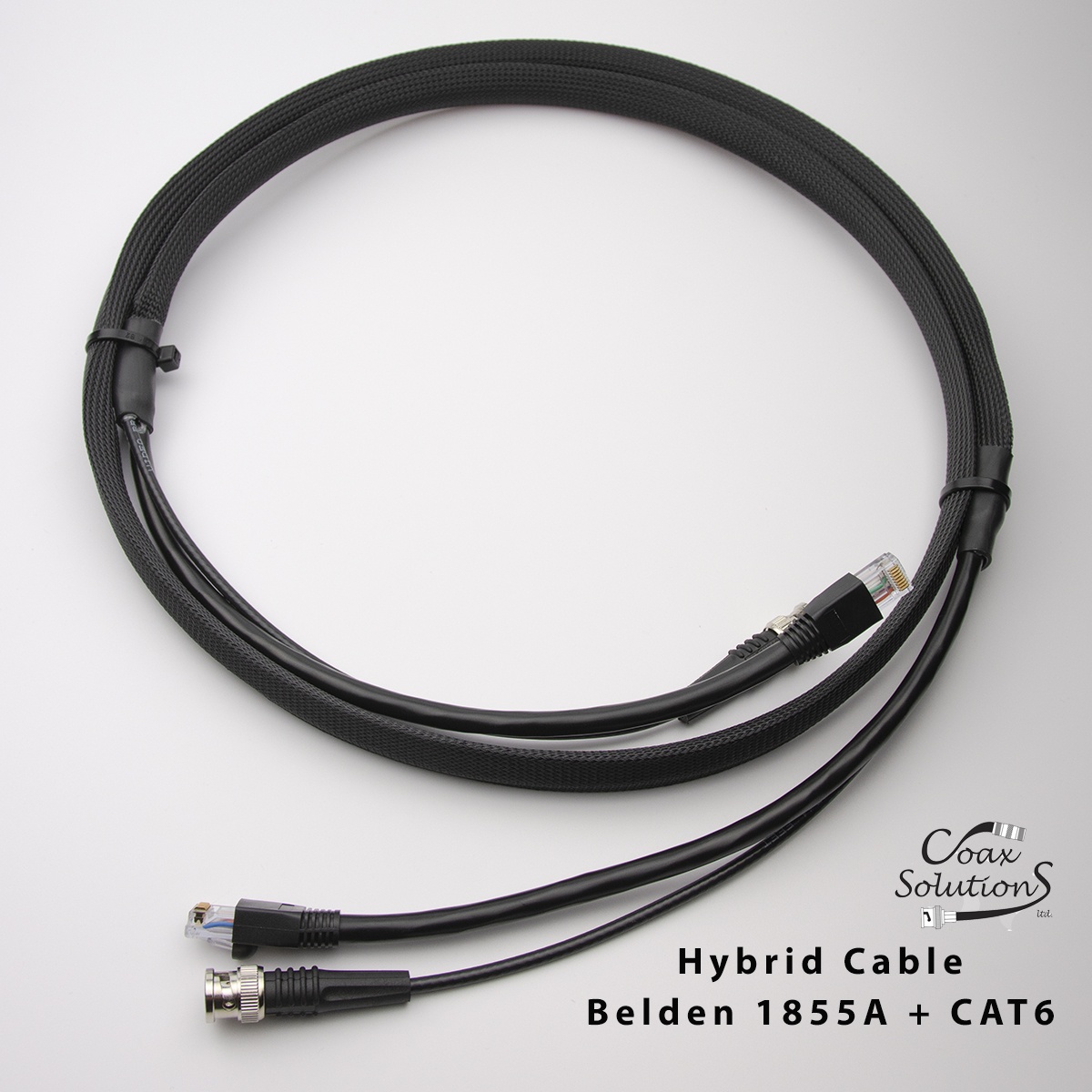

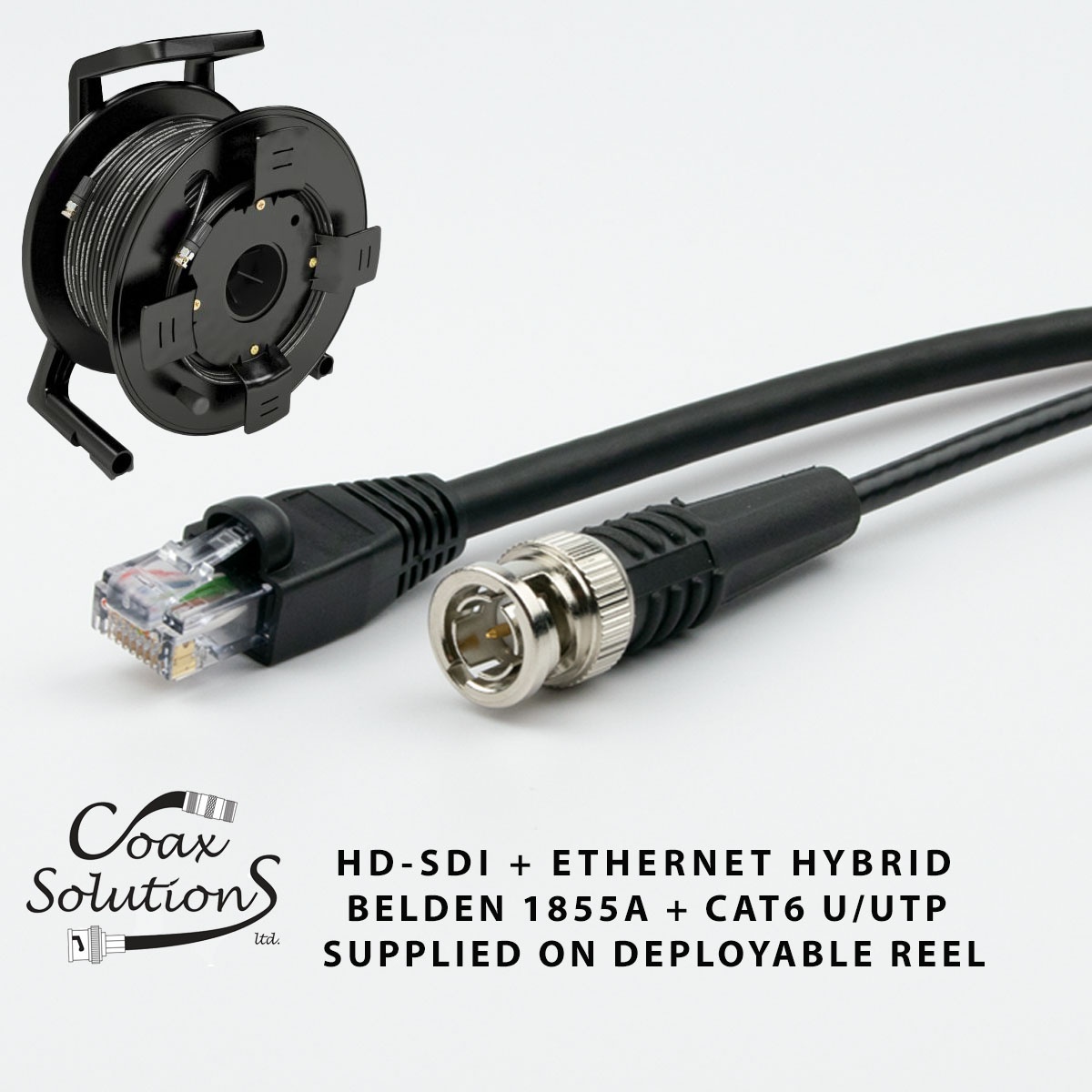

Hybrid Cable assembly supplied loaded on a deployable cable reel - 1 x Belden 1855A precision 6GHz video cable, terminated with precision HD-SDI BNC plugs plus 1 x CAT6 U/UTP Ethernet cable terminated with true CAT6 RJ45 plugs and flush snag-less boots. The 2 cables are held together within a Halogen free braided sleeve, leaving 250mm tails both ends. Tail length can be specified at the time of ordering to suit your application.
The CAT6 U/UTP cable uses a 23awg solid conductor and has a Black LSZH jacket. For cables up to 50M we can also supply a CAT6 U/UTP 24awg stranded conductor option allowing more flexibility.
The Hybrid Video & Data cables are supplied pre-loaded

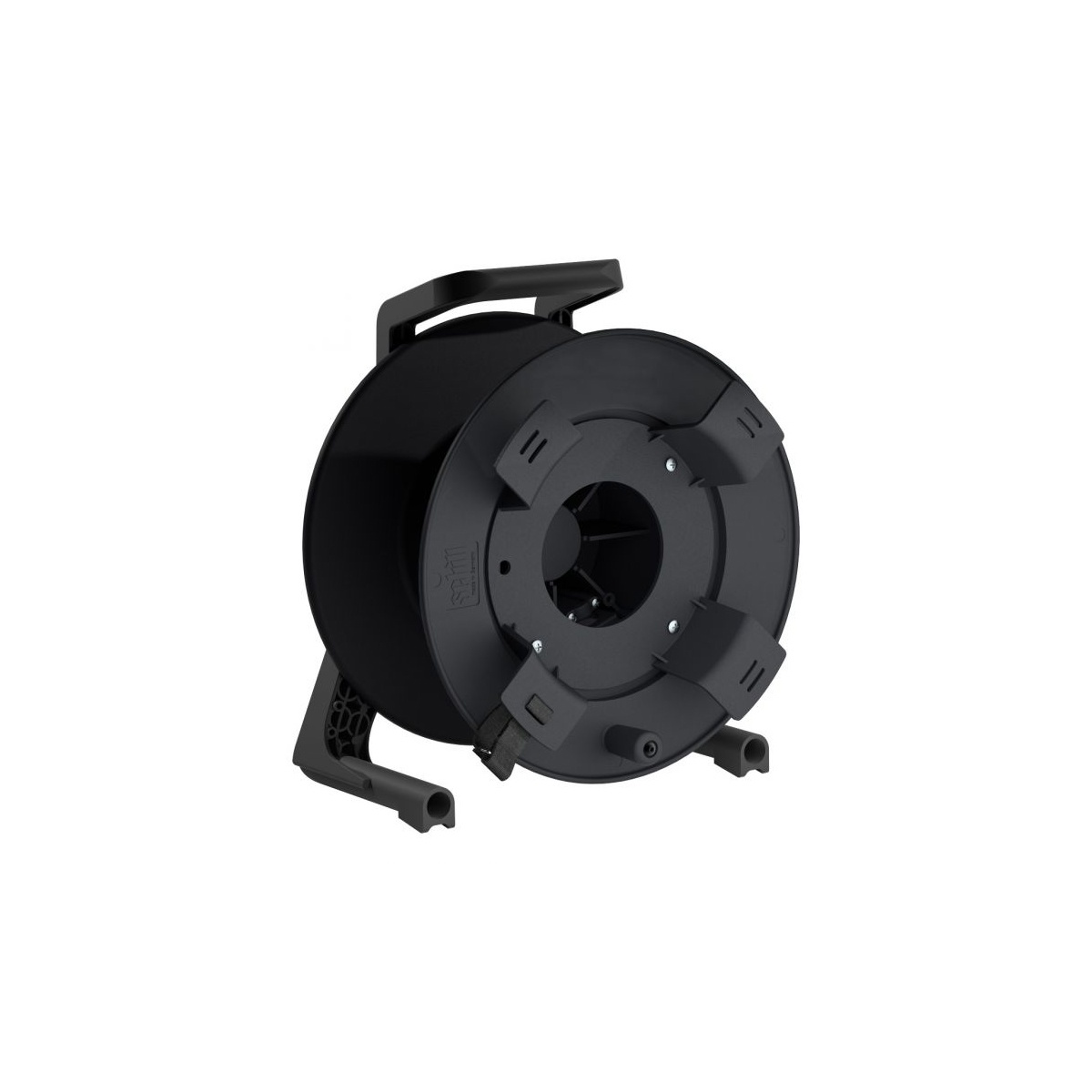

on a Schill GT series professional line reel, fitted with an auxiliary spool.
“The Schill GT series professional line is made of
unbreakable synthetic rubber, these are indestructible reels designed for
professional use.”
Application
Video Streaming, Camera interface, Distribution amplifier, network switch etc
Precision video cable - SMPTE ST 292 HD-SDI 1.5GHz
SMPTE ST 424 HD-SDI 3GHz
Ethernet cable - CAT6 up to 1G Ethernet ANSI/TIA-568-C.2, ISO/IEC 1801, BS EN 50173
Technical Information
Belden 1855A Data Sheet 1855A data sheet 31-1-20.pdf
CAT6 U/UTP Data sheet CAT6 U-UTP Solid cable.pdf
Summary
- Hybrid (Siamese) Precision HD-SDI video + CAT6 Ethernet
- Belden 1855A HD-SDI video cable with HD-SDI BNC plugs
- CAT6 U/UTP 23awg Ethernet cable with CAT6 RJ45 plugs and snag-less boots
- Halogen Free braided sleeve
Options
- Up to 50M length - CAT6 U/UTP 24awg stranded cable for flexibility
- Tail length can be adjusted to suit application. - specify when ordering
- Bespoke multi coax or multi ethernet variants - contact our sales team.
Accessories
DIN 1.0/2.3 Adapter leads
DIN 1.0/2.3 Removal Tool
Micro BNC (HD BNC) Adapter leads
Micro BNC (HD BNC) Removal Tool
Belden 1855A - 305M
RG174-500M Reel
Precision BNC Plug Belden 4855R
