Low Loss 240- Cut Lenghts

  Description

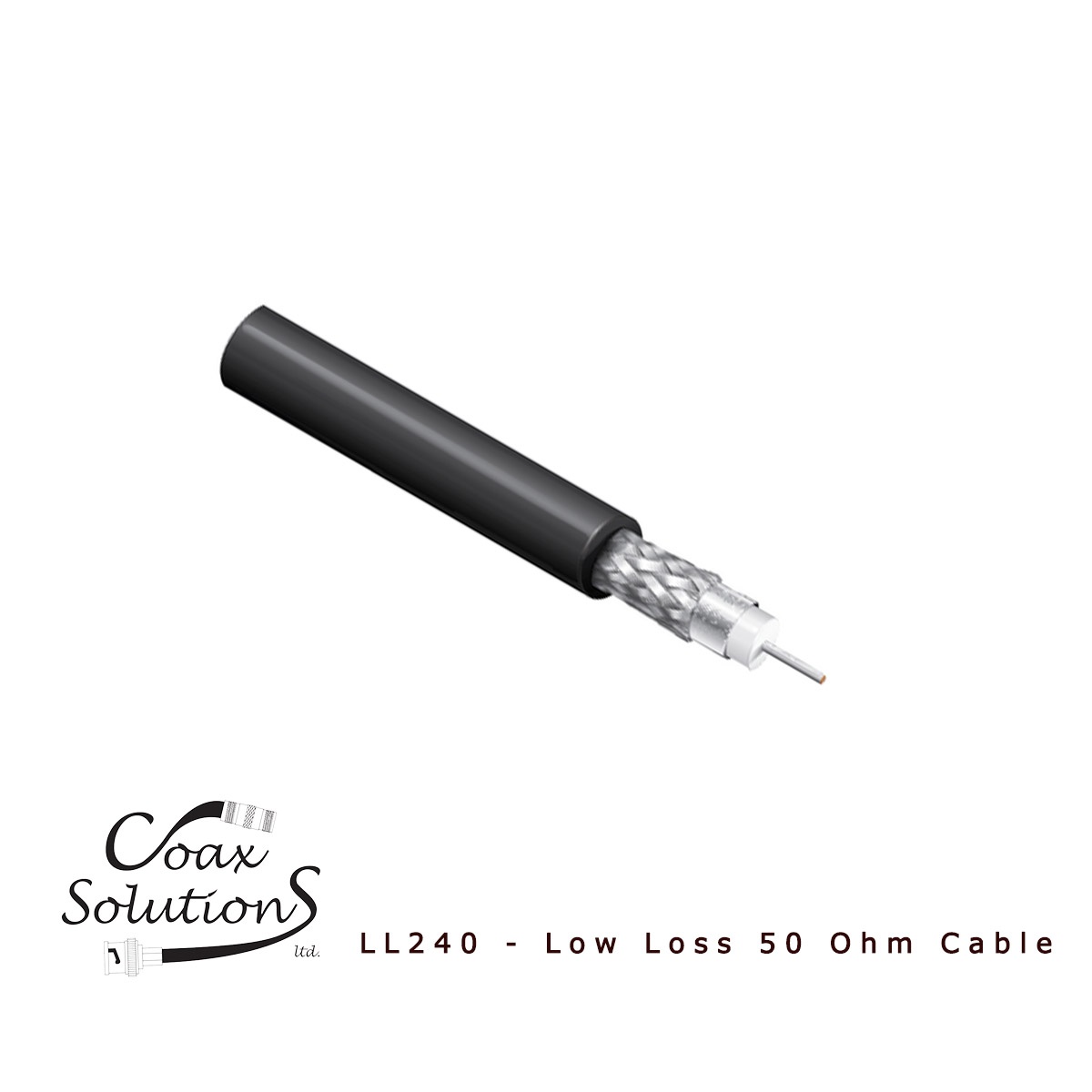

LL240 Low loss 50 Ohm coax cable. (LMR240 Equivalent cable)

Available as cut lenghts (Min 1M)

Mechanical Characteristics & Materials

Inner conductor: 1.40mm plain Copper wire

Dielectric: Foam Polyethylene insulation (3.8mm)

Screen 1: Bonded Aluminium Polyester Foil Tape

Screen 2: Tinned Copper Wire braid (Coverage >90%)

Sheath: PE or LSNH (6.10mm)

Electrical Characteristics

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 75pF/m (nominal)

Velocity Ratio: 0.85

Attenuation (dB 100m @20deg C)

                                                                       50MHz       <6.30

                                                                     150MHz      <10.90

                                                                      220MHz     <13.20

                                                                      460MHz     <19.00

                                                                      900MHz     <27.30

                                                                     1500MHz    <35.60

                                                                     1800MHz    <39.20

Return Loss:                                                       5-470MHz    >/= 25

                                                                       470-862MHz    >/= 24

                                                                      862-2150MHz   >/= 23

Environmental

Storage/Operating Temperature: -15Deg C to +70deg C

Minimum installation Temperature: -5deg C

Typical Low Loss 195 Coaxial Connectors

BNC. TNC. N TYPE. SMA. - Connectors normally available in 1-2 days

Applications

GPS. WLAN. Cellular Communications. Telecoms / Data wiring. Antenna. WIFI.
