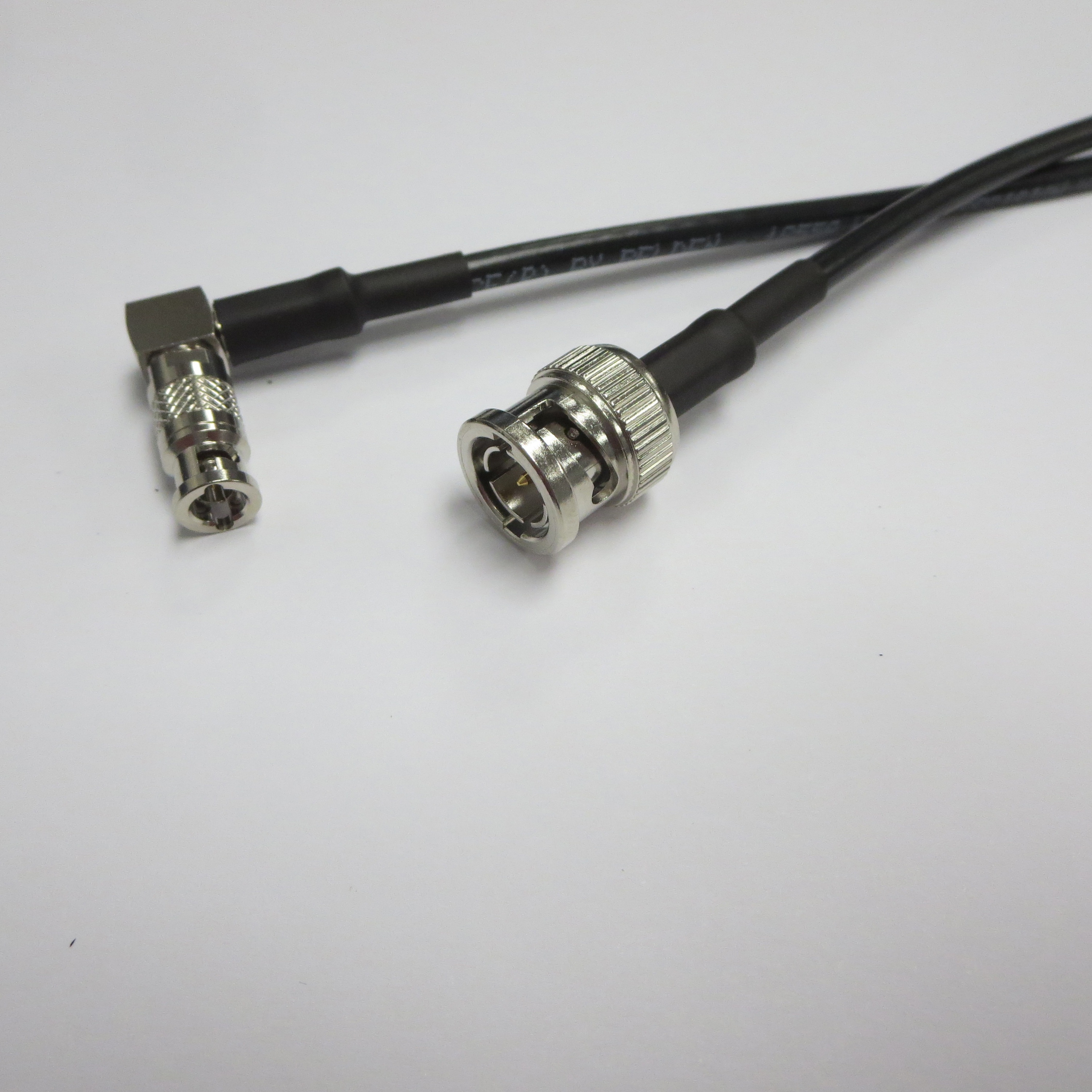

Right Angle Micro BNC (HD BNC) to 4K UHD BNC Plug Adapter cable (Belden 4855R video cable)
Micro BNC (HD BNC) adapter cables suitable for 4K UHD and HD-SDI applications. The adapter cables allow standard size BNC patch leads to be connected to equipment / cameras using the Micro BNC (HD BNC) interface.
The Micro BNC (HD BNC) can easily be confused with the DIN 1.0/2.3 range of connectors.
The connectors are a similar size. The main difference is that the Micro BNC (HD BNC) is a Bayonet lock style connector and the DIN 1.0/2.3 connector is a push/pull style connector.
Application
SMPTE ST 2082-1 (12 Gb/s)
SMPTE ST 424 (HD 3G-SDI) (1080P)
SMPTE ST 292 (HD 1.5G-SDI)
Technical Information
Belden 4855R 4855R data sheet 31-1-20.pdf
