RG174 - Cut lengths

Description

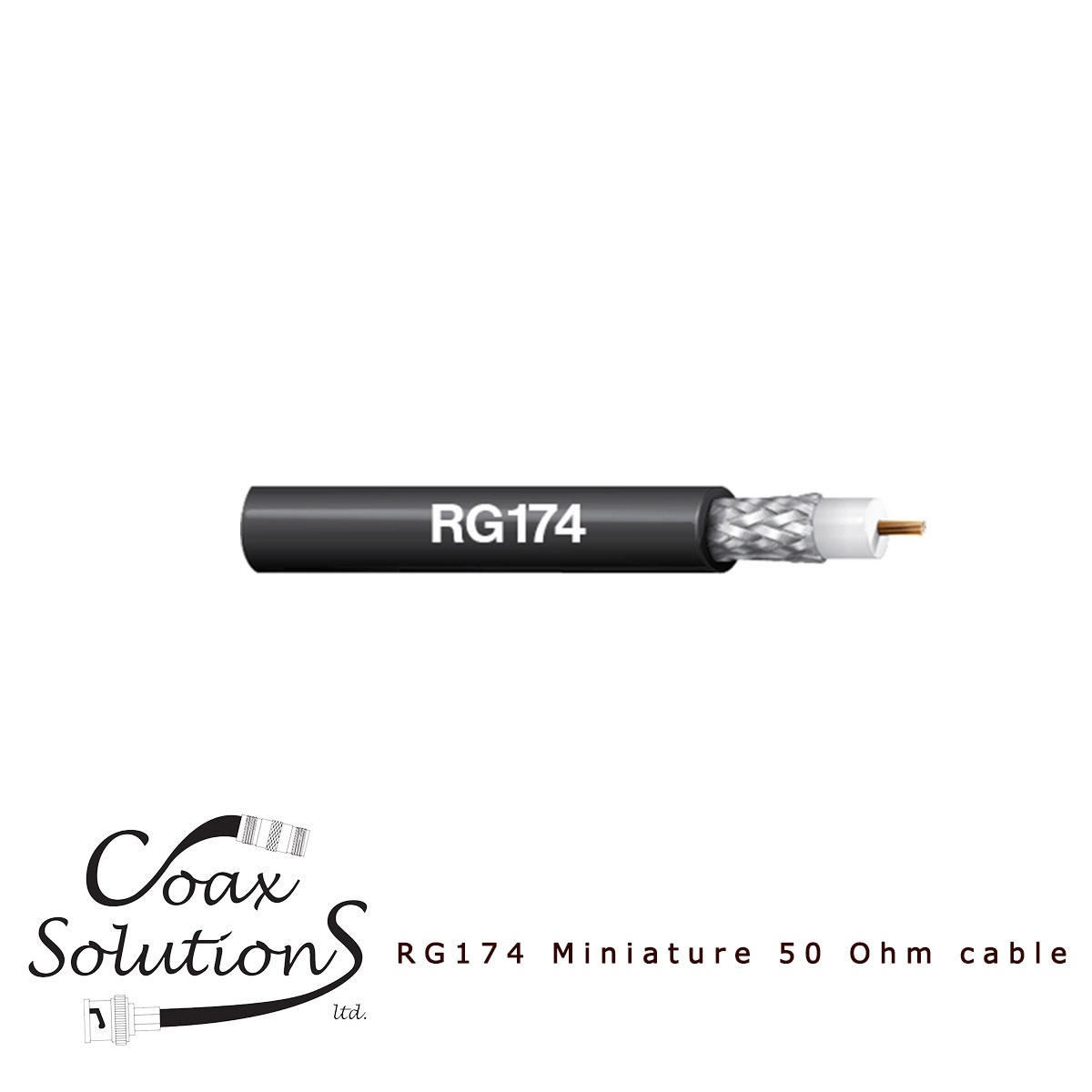

RG174 Flexible Miniature 50 Ohm coax cable.

Supplied as cut lengths - min order is 1M

Mechanical Characteristics & Materials

Inner conductor: 7/0.16mm Copper Covered Steel

Dielectric: Solid Polyethylene Insulation (1.52mm)

Screen: Tinned Copper wire braid

Sheath: Black PVC (2.80mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <317 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 53pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)       50MHz       <21.3

                                                                     100MHz     <32.8

                                                                     400MHz     <82.0

                                                                     1000MHz   <147.6

Environmental

Storage/Operating Temperature: -15Deg C to +70Deg C

Minimum Installation Temperature: -5Deg C

Typical RG174 Coaxial Connectors

BNC. TNC. N TYPE. FME. UHF.

SMA. SMB.  MCX. MMCX. SSMB. SMC. MINI UHF. SSMB

Applications

GPS. WLAN. Cellular Communications. Telecoms / Data wiring.
