RG179BU-100M

Description

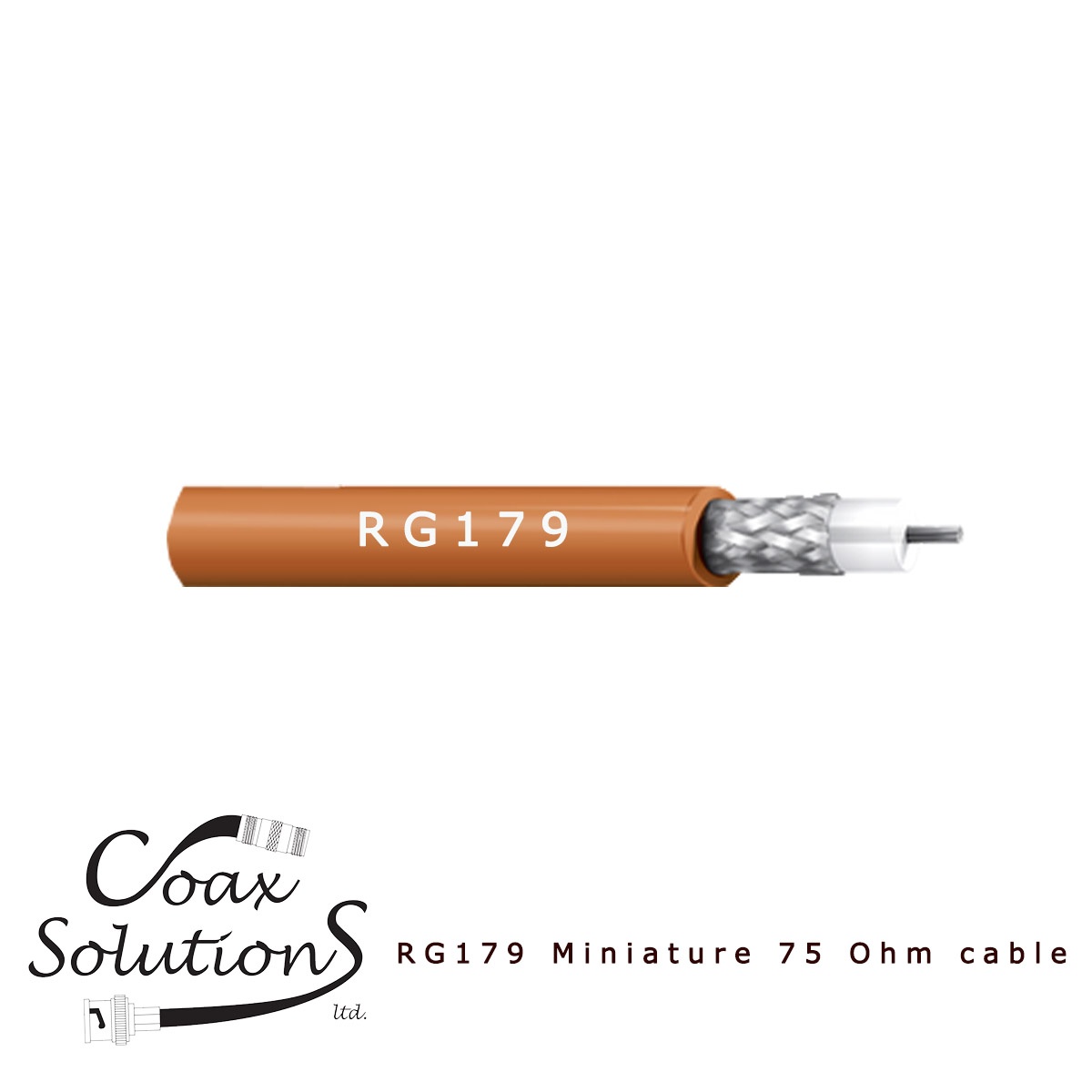

RG179 BU miniature Flexible ,75 Ohm coax cable

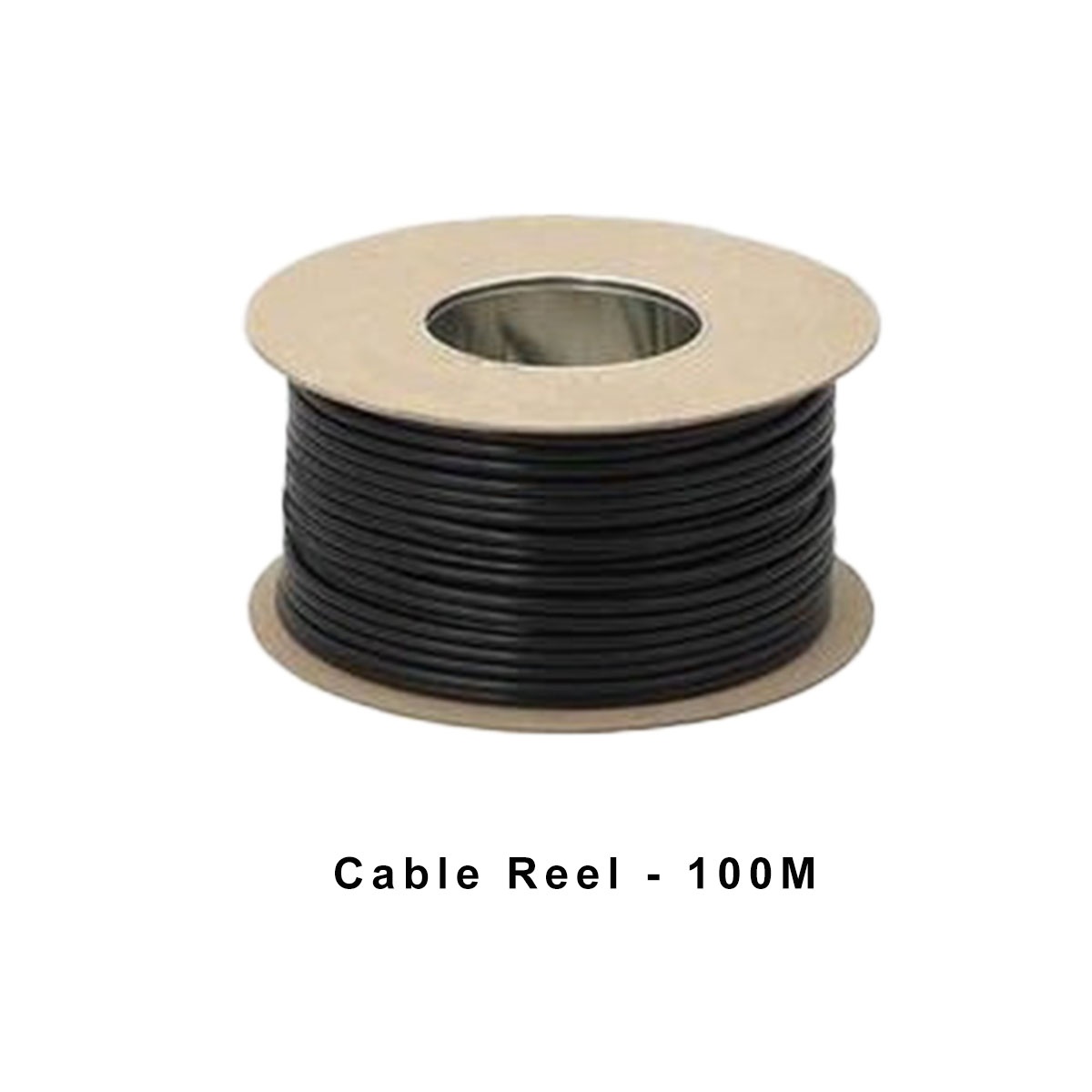

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 7/0.102mm Silver plated Copper Clad Steel

Dielectric: PTFE (1.60mm)

Screen: Silver plated copper braid

Sheath: FEP (2.54mm)

Electrical Characteristics

Characteristic impedance: 75 Ohm

Capacitance: <63.65 pF/m

Velocity ratio: 70%

Attenuation (dB 100m @20 Deg C)           150MHz    32.7

                                                                   220MHz    39.8

                                                                   450MHz    57.4

                                                                   900MHz    82.3

                                                                  1500MHz   107.6

                                                                  1800MHz   118.4

                                                                  2000MHz   125.3

                                                                  2500MHz   141.1

                                                                  3000MHZ   155.6

Environmental

Temperature Range:  -55 to +200 Deg C

Typical RG179BU Coaxial Connectors

BNC. F Type

RG179 BU Applications

RF signals. Broadcast. CCTV. Medical. Security systems
