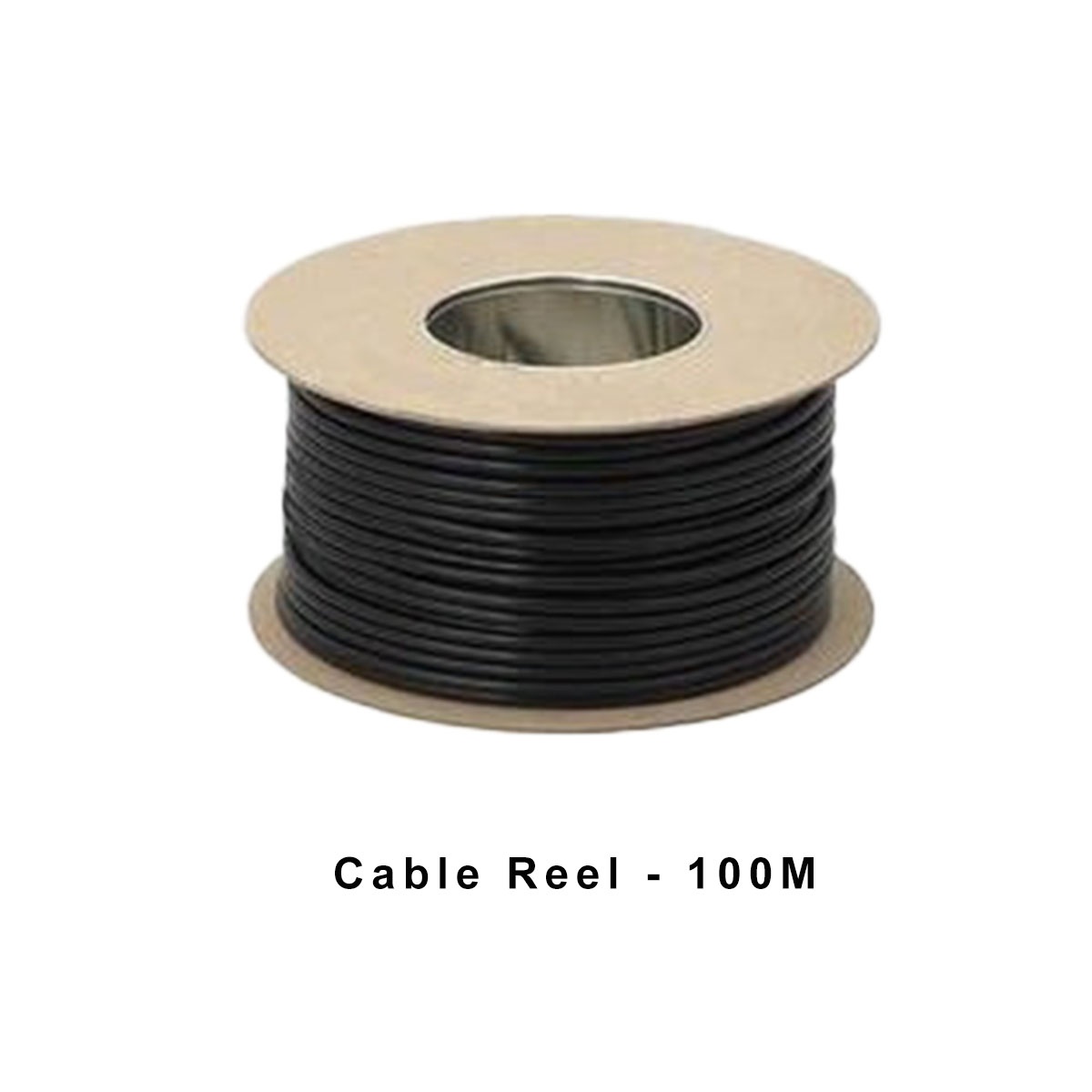

RG214U - 100M Reel

Description

RG214 Flexible Low Loss, Double Screen 50 Ohm coax cable

Supplied on 100M Reels

Mechanical Characteristics & Materials

Inner conductor: 7/0.75mm Silver Plated Copper (2.25mm)

Dielectric: Solid Polyethylene Insulation (7.20mm)

Screen 1: Silver plated Copper wire braid (coverage >95%)

Screen 2: Silver plated Copper wire braid (coverage >95%)

Sheath: Black PVC (10.80mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   <5.7 Ohm/Km

Characteristic impedance: 50+/- 3 Ohm

Capacitance: 104pF/m (nominal)

Velocity ratio: 0.66

Attenuation (dB 100m @20 Deg C)             50MHz       <4.80

                                                                     100MHz     <7.00

                                                                     200MHz    <10.30

                                                                     400MHz     <15.20

                                                                     500MHz     <17.00

                                                                     600MHz     <19.20

                                                                     860MHz     <24.00

                                                                    1000MHz    <26.30

Environmental

Storage/Operating Temperature: -15Deg C to +70Deg C

Minimum Installation Temperature: -5Deg C

Typical RG214 Coaxial Connectors

BNC. TNC. N TYPE. UHF.

Applications

Low Loss Flexible RF. Telecoms. Flexible antenna cable. Medical. Broadcast. Computer. Military
