RG316 - Cut Lengths

Description

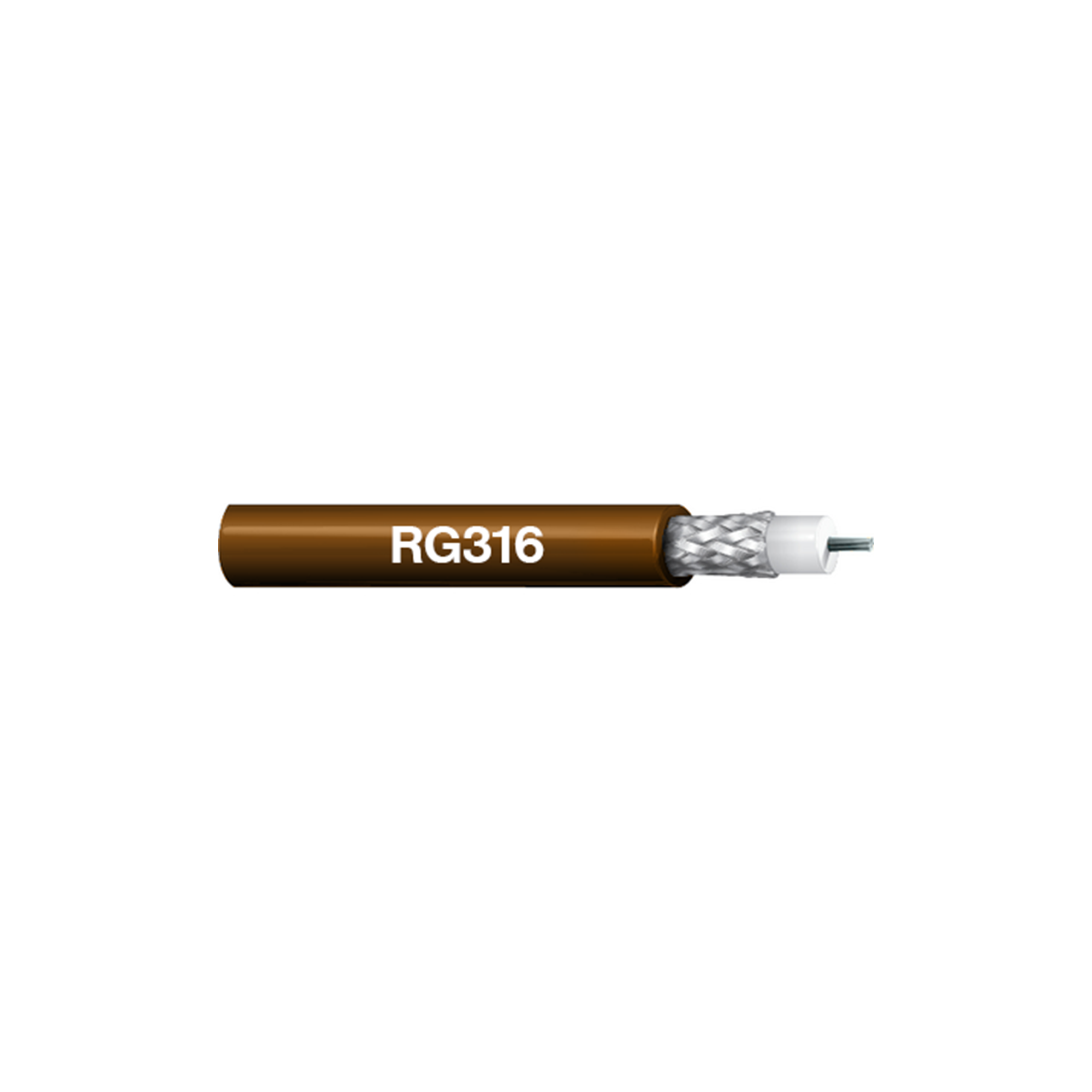

RG316 Flexible Miniature 50 Ohm coax cable.

Available as cut lengths (min 1m)

Mechanical Characteristics & Materials

Inner conductor: SCCS (7/0.0067")

Dielectric: PTFE (0.06")

Screen: SPC (0.075")

Sheath: FEP (0.098")mm)

Electrical Characteristics

Characteristic impedance: 50+/- 2 Ohm

Capacitance: 29.4pF/Ft (nominal)

Max Voltage: 1200v

Max Frequency: 3GHz

Attenuation (dB 100Ft)                                             (Typical to max)

                                                                     100MHz     7.8-11.0

                                                                     400MHz     16.0-21.0

                                                                     1000MHz   26.3-38.0

                                                                     2400MHz   43.0-55.4

Environmental

Typical RG174 Coaxial Connectors

BNC. TNC. N TYPE.

SMA. SMB.  MCX. MMCX. SSMB. SMC. SSMB

Applications

GPS. WLAN. Cellular Communications. Telecoms / Data wiring.
