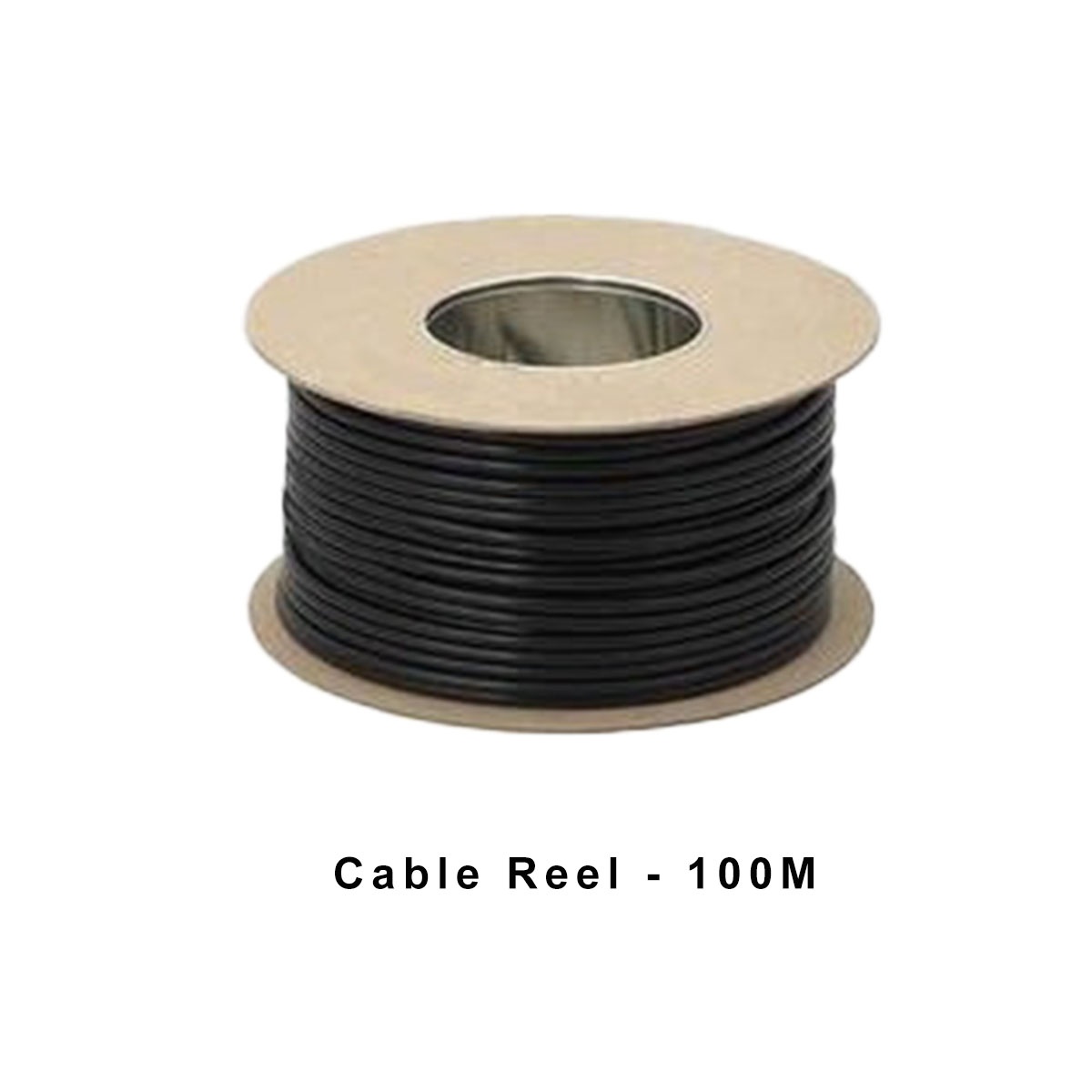

RG59BU-MIL-C-17F-100M Reel

Description

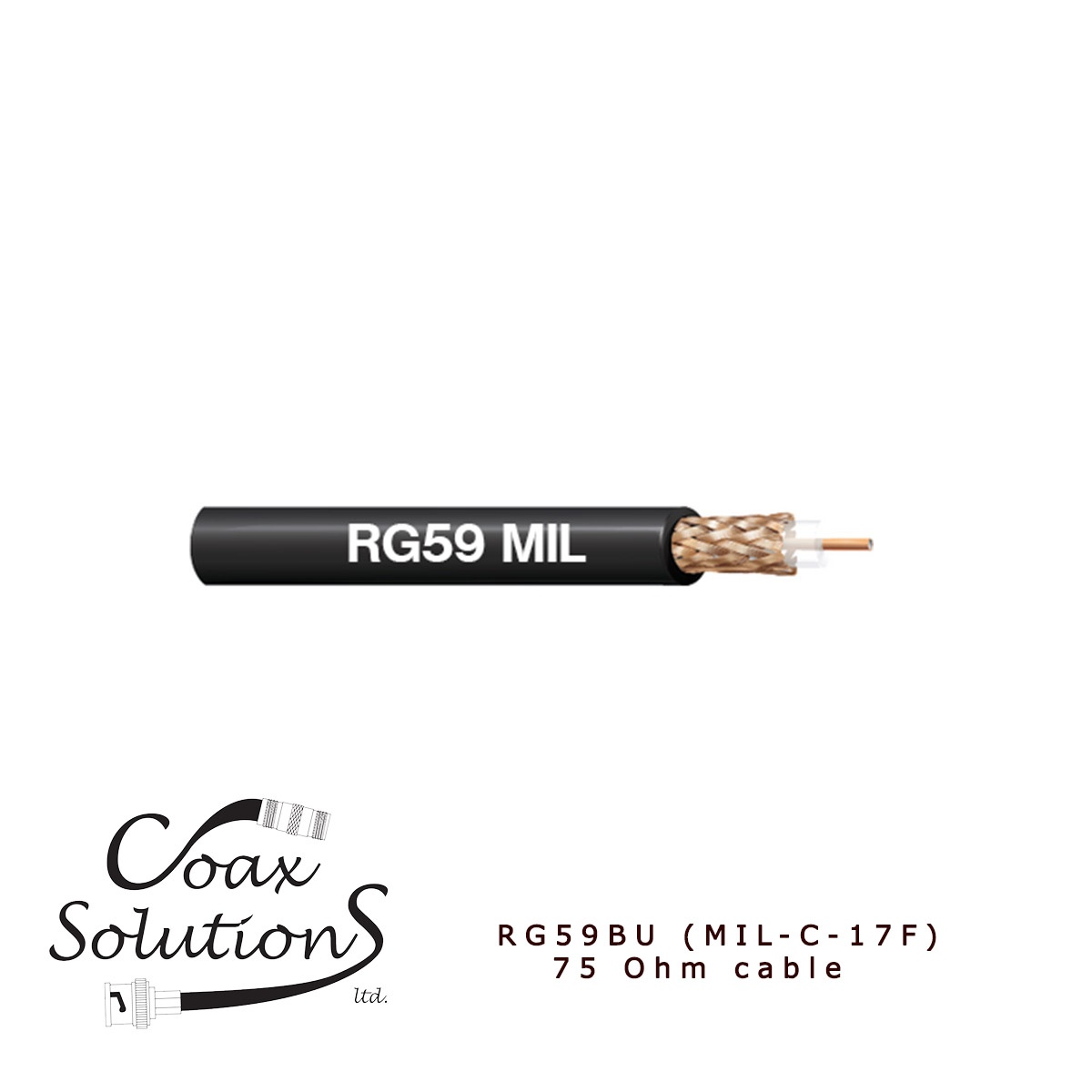

RG59 BU (MIL-C-17F) Flexible ,75 Ohm coax cable

Supplied on 100M Reel

Mechanical Characteristics & Materials

Inner conductor: 1/0.58mm Copper covered Steel

Dielectric: Solid PE insulation (3.70mm)

Screen 1: Copper Braid (coverage 84%)

Sheath: Black PVC (6.15mm)

Electrical Characteristics

DC Resistance inner conductor @20Deg C   235 Ohm/Km

Insulation DC resistance @20Deg C    >1000Mohm/km

Rated voltage 30V

Characteristic impedance: 75+/- 3 Ohm

Capacitance: 67pF/m (nominal)

Velocity ratio: 0.667

Attenuation (dB 100m @20 Deg C)             50MHz       <8.50

                                                                     100MHz     <11.80

                                                                      200MHz    <16.50

                                                                      450MHz    <26.00

                                                                      800MHz    <44.50

                                                                      860MHz    <37.20

                                                                    1000MHz    <39.50

Environmental

Storage/Operating Temperature:  +105Deg C

Typical RG59 BU (MIL-C-17F) Coaxial Connectors

BNC. F Type

Applications

Baseband video. RF signals. Broadcast. CCTV. Composite video. Analogue video.
